The WiFi module ESP-1 is manufactured by using a high-performance chip ESP8285. This small chip is encapsulated an enhanced Tensilica’s L106 Diamond series 32-bit kernel CPU with an SRAM. Thus, ESP8285 has the complete function of Wi-Fi function; it not only can be applied independent but can be used as a slave working with other host CPU. When ESP8285 is applied as a slave, it can start from the onboard Flash.
The built-in high-speed buffer is not only benefiting improve the system performance but optimizing the store system. In addition, ESP8285 can be used as a Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU design.
Specifications
| Operating Voltage | 3.3V DC |
| Support | 802.11 b/g/n/e/i |
| compatible with | ESP8266 |
| Support three modes | Station, SoftAP, and SoftAP+STA |
| ADC | 10-bit |
| Operating Temperature (°C) | -40 ~ +125 |
| Length (mm) | 20.5 |
| Width (mm) | 16 |
| Height (mm) | 3 |
| Weight (gm) | 1 (approx) |
| Shipment Weight | 0.01 kg |
Features:
- Ultra-small size.
- Support serial to WiFi
- Wireless transparent transmission.
- Long-distance transmission with ultra-low power.
- Support outboard antenna.
- Bearing high temperature to 125 ºC, compared to the 85ºC for ESP8266.
- Module size:24.5mm x 14mm.
- Derived from ESP8266, ESP8285 has a flash memory of 1MB
- Totally compatible with ESP8266
- WiFi support 802.11 b/g/n/e/i
- High temperature resistant, working temperature: -40℃-125℃
Package Includes:

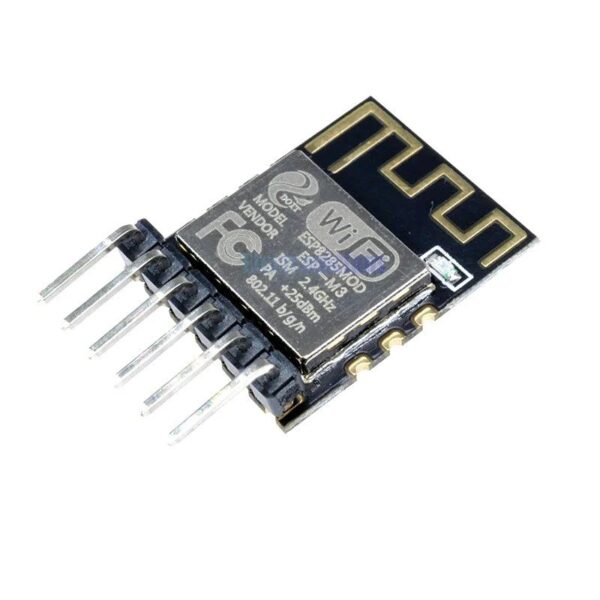

- 1 x DOIT Mini Ultra-Small size ESP-M3 Serial Wireless WiFi Transmission Module.
- 1 x Header Pins.
