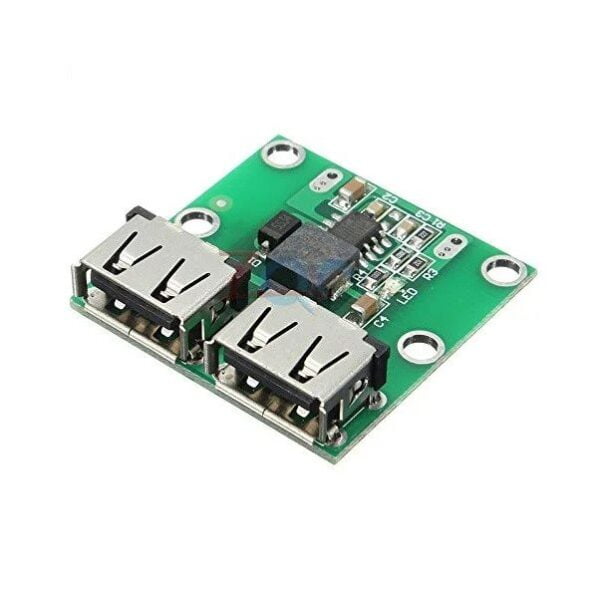

This is Dual USB Output 9V/12V/24V to 5V 3A DC-DC Car Charging Voltage- Stabilizer Module. It can be directly installed on 9V/12V/24V vehicle battery to charge the mobile tablet or any other gadget which need 5V DC supply up to 3A.
The module has the variable input voltage range ranging from 6V to 24V. Two USB output provides the Stabilized 5V DC output at both Channels simultaneously
Specifications
| Input Supply voltage (V) | 6 ~ 26 |
| Output voltage (V) | 5 |
| Output Current (A) | 3 |
| Length (mm) | 30.5 |
| Width (mm) | 33.5 |
| Height (mm) | 9 |
| Weight (gm) | 7 |
| Shipment Weight | 0.01 kg |
Features:
- Input voltage range: 6-26V.
- Output voltage: 5.2V (consider the charge line loss, the output is 5.2V or so, the load side is about 5V).
- Output current: 3A (in the absence of a heat sink device, the stable output current is 2A).
- Two output Port can charge two devices simultaneously.
- Buck Voltage Stabilization provides Stable voltage and protects the device from any voltage surge damage
- Supports up to 3A output which provides Fast Charging to the supportable device.
Package Includes:
- 1 x Dual USB Output 9V/12V/24V to 5V 3A DC-DC Car Charging Voltage-Stabilizer Module.
