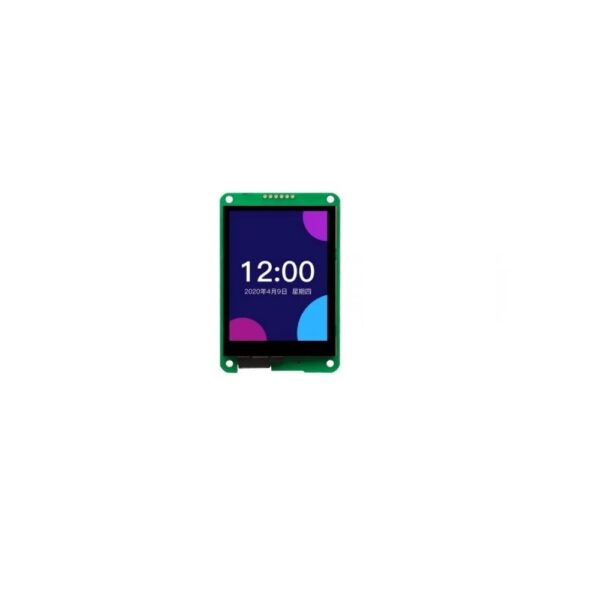

2.8inch inch Smart HMI (Human Machine Interface) LCD module with Resistive touch screen. This LCD module allows the user to design a rich GUI based interactive system on the LCD. It has an audible ton indication s the user interacts with the module. This type of smart LCD can be used in a variety of machines such as vending machines etc where an end-user needs to interact with the machine.
Any microcontroller can serially communicate with this module to send or receive the data. Standard UART based serial communication interface allows the same. Special GUI and functionality design software is available for the design of the interaction flow on the smart LCD. Flexible approach to communicating with the LCD module open a lot of applications possibility. A variety of HMI utilities can be achieved using this fast response, Resistive touch smart HMI display module.
Specifications
| Operating Voltage (VDC) | 4.5 ~ 5.5 |
| Operating Current (A) | 220mA |
| Pixel Resolution | 320*240 |
| LED Brightness (MCD) | 300 |
| Interface | I2C |
| UART | |
| Touch Type | Resistive |
| Shipment Weight | 0.043 kg |
Features:
- Size: 2.8″
- Touch Type: Resistive
- Resolution: 320×240
- Grade: Commercial
- Colour: 65K
- Backlight: LED
- Brightness: 300 nit
- Operating Voltage: 5 Volts
- Working Temperature: -20 to 70°C
Package Includes :
- 1 x DWIN HMI 2.8 Inch TN LCD Resistive Touch Display
