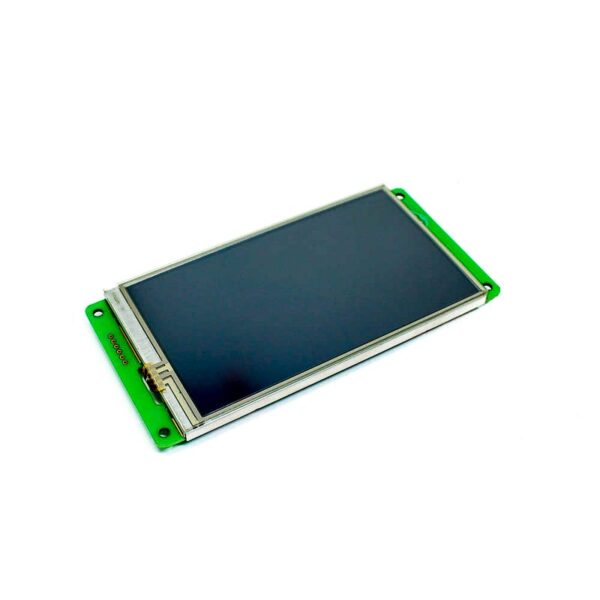

This DWIN 5 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.
User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 250nitnit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards. which can be interface with I2C communications.
Specifications
| Operating Voltage (VDC) | 4.5 ~ 5.5 |
| Flash Memory | 16MB |
| RAM | 128KB |
| LED Brightness (MCD) | 250 |
| Interface | I2C |
| UART | |
| Touch Type | Resistive |
| Shipment Weight | 0.208 kg |
Features:
- Built-in DGUS II intelligent software
- Integrated smart screen
- Powerful data management
- Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
- Dimensions:143.5(W) × 80.9(H) × 15.8(T) mm
- 16.7M colours
- Capacitance touch screen, Buzzer
Display:
Size -5″
- Display Format -480×800 Pixel Matrix
- Brightness -250nit
- Active Area – 108.0mm (W) ×64.8mm (H)
- Colour – 24-bit colour 8R8G8B
- Backlight – LED
Package Includes :
- 1 x DWIN HMI 5 Inch TN LCD Resistive Touch Display
