                                                                                                                                                    HomeDisplayHMI LCD Display DWIN TN, resistive touch 4.3 inch COF Display

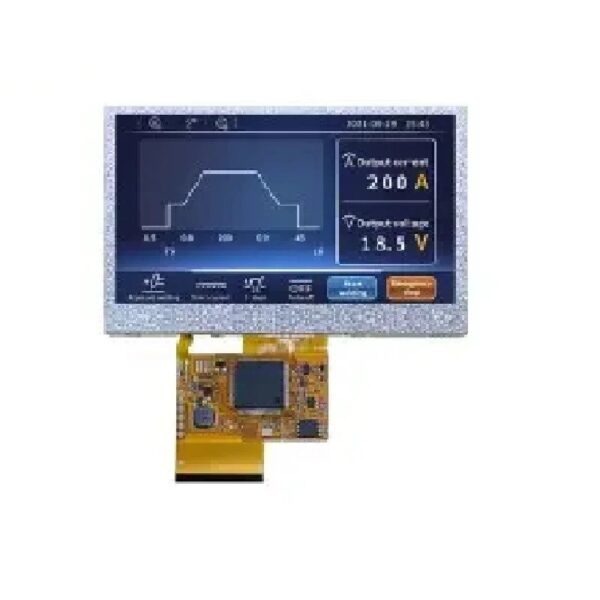

                                                                                                                                                    DWIN TN, resistive touch 4.3 inch COF Display

                                                                                                                                                    ₹1,271.00 (Exclusive GST Tax 18%)

                                                                                                                                                    Available Offers
                                                                                                                                                    • ► Free Shipping By Bluedart Air  : On over value Rs.3000
                                                                                                                                                    • ► Bulk Quantities discount :  send mail on sales@compoindia.com
                                                                                                                                                    • ► Tax invoice  : Get GST invoice and save up to 18% on business purchases

                                                                                                                                                    Note : Customer Don't need to pay any extra charge like custom duty and any other cost. Have to pay only GST with price.

                                                                                                                                                    Out of stock

                                                                                                                                                    ► Bulk Quantities discount :  send mail on sales@compoindia.com



                                                                                                                                                    Great price on bulk order

                                                                                                                                                    Secure Payment

                                                                                                                                                    Fast & Quick Delivery

                                                                                                                                                    7 days Return Policy

                                                                                                                                                    More on shipping and other trade services
                                                                                                                                                    safety-delivery

                                                                                                                                                    Your Safety is our Priority

                                                                                                                                                    India, we care for you and are here for you
                                                                                                                                                    Know More

                                                                                                                                                    Help us improve your shopping experience

                                                                                                                                                    Write your Feed Back

                                                                                                                                                    review

                                                                                                                                                    Can't find what you are looking for?

                                                                                                                                                    Let Us Know
                                                                                                                                                    Add to wishlist
                                                                                                                                                    SKU: K71718 Category: HMI LCD Display
                                                                                                                                                    Share
                                                                                                                                                    close
                                                                                                                                                    compoindia | Robotics parts store | Development boards | Raspberry Pi | Display
                                                                                                                                                    4.9
                                                                                                                                                    Based on 130 reviews
                                                                                                                                                    powered by Google
                                                                                                                                                    review us on
                                                                                                                                                    Melford Mutara
                                                                                                                                                    11:21 11 Dec 23
                                                                                                                                                    I was very happy about the servicesGood customer care
                                                                                                                                                    tafadzwa chipere
                                                                                                                                                    11:20 11 Dec 23
                                                                                                                                                    Excellent services
                                                                                                                                                    Bhavin Ambaliya
                                                                                                                                                    10:40 11 Dec 23
                                                                                                                                                    2021 01126
                                                                                                                                                    06:13 23 Nov 23
                                                                                                                                                    the owner helped a lot with our project and explained all the components .
                                                                                                                                                    Aadi Jain 20220301003
                                                                                                                                                    05:27 01 Nov 23
                                                                                                                                                    Gaddam Dinesh
                                                                                                                                                    08:23 07 Oct 23
                                                                                                                                                    Product and service well
                                                                                                                                                    Ishwariya Mathivanan
                                                                                                                                                    17:39 06 Oct 23
                                                                                                                                                    The person responded instantly even after office hours ! Excellent service and extremely fast delivery!!!
                                                                                                                                                    RAVAL DIPAK V.
                                                                                                                                                    14:07 02 Jan 23
                                                                                                                                                    Very good staff. Best price affordable and best quality. Almost all parts like Arduino, raspberry and their components are available. Also Delivery is also quick.
                                                                                                                                                    js_loader
                                                                                                                                                    • Description
                                                                                                                                                    Description

                                                                                                                                                    This DWIN 4.3 inch COF SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives user great and useful tools to develop their own UI with great Features. One can design UI Such as a button, slider, Graph, Text Display, etc. on their own.

                                                                                                                                                    User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 200nitnit brightness which makes it visible in daylight too.

                                                                                                                                                    Specifications

                                                                                                                                                    Product TypeCOF Display
                                                                                                                                                    BrandDwin
                                                                                                                                                    Color262K colors
                                                                                                                                                    LCD TypeTN-TFT-LCD
                                                                                                                                                    Viewing AngleNormal viewing angle, typical value of 70°/70°/30°/40°(L/R/U/D)
                                                                                                                                                    Display Area95.04mm (W)×53.86mm (H)
                                                                                                                                                    Resolution480×272
                                                                                                                                                    BacklightLED
                                                                                                                                                    BrightnessDMG48270F043_01WN:250nit
                                                                                                                                                    DMG48270F043_01WTR:200nit
                                                                                                                                                    Power Voltage4.5~5.5V, typical value of 5V
                                                                                                                                                    Operating Current220mA, VCC=5V, max backlight,
                                                                                                                                                    78mA, VCC=5V, backlight off,
                                                                                                                                                    User Interface50Pin_0.5mm FPC
                                                                                                                                                    Baudrate3150~3225600bps
                                                                                                                                                    InterfaceUART2: TTL;
                                                                                                                                                    UART4: TTL;( Only available after OS configuration)
                                                                                                                                                    UART5: TTL;(Only available after OS configuration
                                                                                                                                                    Data FormateUART2: N81;
                                                                                                                                                    UART4: N81/E81/O81/N82;4 modes (OS configuration)
                                                                                                                                                    UART5: N81/E81/O81/N82;4 modes (OS configuration)
                                                                                                                                                    Shipment Weight0.135 kg

                                                                                                                                                    Features:

                                                                                                                                                    • 4.3 inch, 480×272 pixels resolution, 262K colors, TN-TFT-LCD, normal viewing angle.
                                                                                                                                                    • Smart screen without TP, product thickness of only 3mm.
                                                                                                                                                    • COF structure featured by light and thin structure, low cost and easy production.
                                                                                                                                                    • 50 pins interfaces, including IO, UART, CAN, AD, PWM from CPU core for easy secondary development.
                                                                                                                                                    •  Suitable for consumer applications with simple functions, mild working environment, and large enough consumption

                                                                                                                                                    Packages includes:

                                                                                                                                                    • 1 x DWIN TN, resistive touch 4.3 inch COF Display
