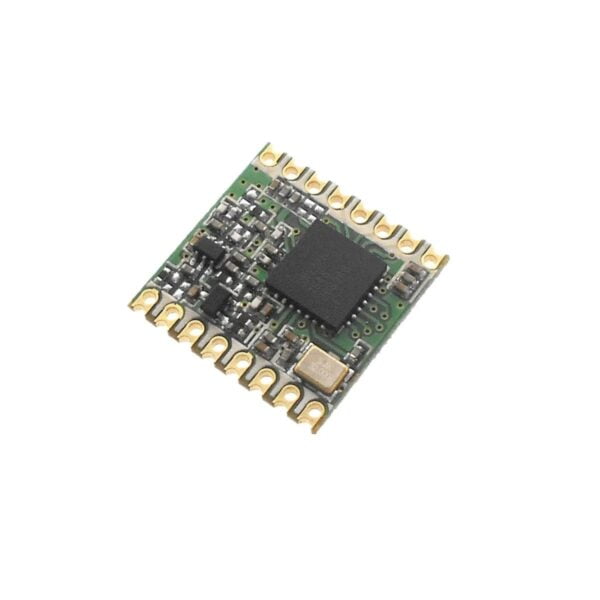

This is E70-868T14S CC1310 IC 868MHz IOT SMD RF Wireless UHF Module having Transmitting power of 4~14 dBm and Receiving sensitivity -108 dBm.
Specifications
| Receiving sensitivity | -108 dBm |
| Transmitting power | 4~14 dBm |
| Working frequency | 861~876.5 MHz |
| Air data rate | 2.5k~168kbps |
| IC | CC1310F128RSM |
| Test distance | 1500m |
| Core | Cortex-M3( MCU)+Cortex-M0(RF) |
| RAM | 20 KB |
| FLASH | 128 KB |
| Antenna type | IPEX / Stamp hole |
| Communication interface | UART |
| Buffer | 2048 bytes buffer |
| Size(mm) | 14 x 20 |
| Shipment Weight | 0.03 kg |
Features:
- Easy to use, Easy to carry, Easy To Install
- Good quality product with lite weight.
- CC1310 868MHz RF Wireless Module E70-868T14S2 IOT Transceiver SMD UART
Package Includes:
- 1 x E70-868T14S CC1310 IC 868MHz IOT SMD RF Wireless UHF Module
