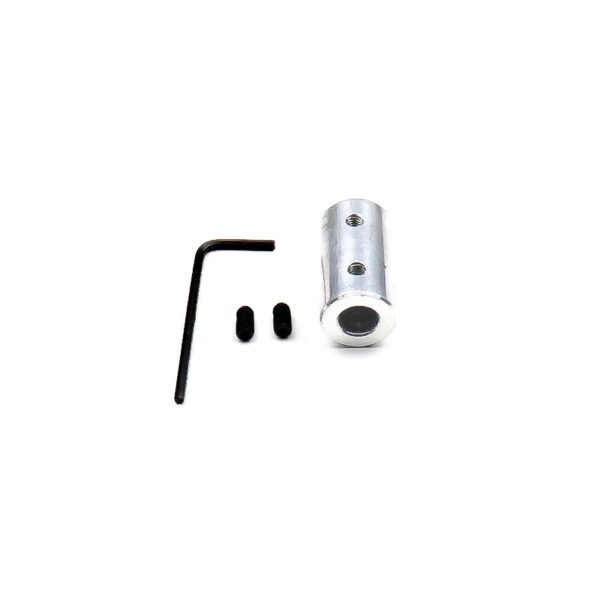

The EasyMech Aluminium NEMA17 Shaft Coupling is lightweight coupling and exhibits more strength in class. This is made up of HE-30 grade aluminum. This type of couplings are very common and found in the wide range of CNC Machines.
Please note that the bore diameters of this product are as d1=5mm and d2=8mm.
They can firmly hold the shaft of the motor and other peripherals with the help of Grub Screws which can be tightened rigidly by using Allen Key which we have included in this product pack.
Specifications
| Material | Aluminium |
| Length (mm) | 30 |
| Outer Diameter (OD)(mm) | 16 |
| Bore Diameter [d1] (mm) | 5 |
| Bore Diameter [d2] (mm) | 8 |
| Weight(gm) | 16 |
| Shipment Weight | 0.02 kg |
Features :
- Exhibits good strength.
- High-grade aluminum couplings.
- Fit for all CNC projects
Package Includes :
- 1 x EasyMech Aluminium NEMA17 coupling.
- 1 x Medium Quality Allen Key 2mm
- 2 x MS M4x6 Socket Set Screws(Allen Grub)
