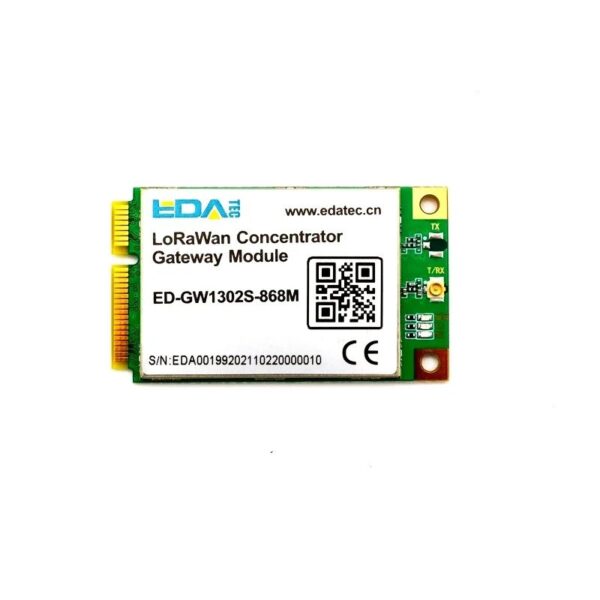

EDATec 868M Lora Module for EU base on SX1303 CE is a new generation of LoRaWAN gateway module in mini-PCIe form-factor with SPI interfaces based on Semtech® SX1303 and SX1250. It features extremely low power consumption, and outstanding performance with CE, FCC certified.
Specification
Series | ED-GW1303 |
Voltage – Supply | 3V ~ 3.6V |
Current – Receiving | 54mA |
Current – Transmitting | 306mA |
Package | Box |
Product Status | Active |
RF Family/Standard | Navigation |
Protocol | LoRa Modulation |
LoRa Frequency | 868MHz |
Power-Output | 25dBm |
Serial Interfaces | SPI |
Antenna Type | Antenna Included, I-PEX |
Utilized IC / Part | SX1303 |
Mounting Type | Card Edge |
Operating Temperature | 0°C ~ 60°C |
Shipment Weight | 0.1 kg |
Features:
- Mini PCIe form factor with SPI interfaces
- Powered by Semtech® SX1303 baseband processor
- Ultra-low operating temperature without additional heat dissipation needed
- High sensitivity with Semtech® SX1250 TX/RX front-end; TX power up to 25 dBm @3.3V
- Supports global license-free frequency band including EU868, US915, AS923, AU915, KR920 and IN865
- Certified with CE, FCC
Package Includes:
- 1 x EDATec 868M Lora Module for EU base on SX1303 CE
