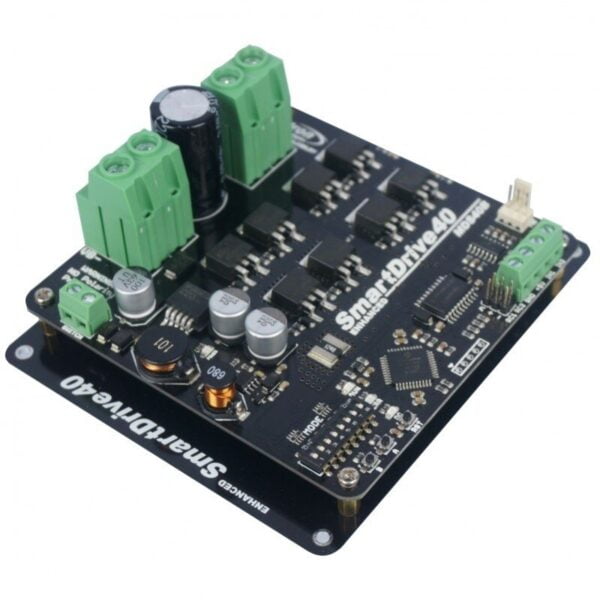

After the success of MDS40A and with feedback from users, it is now Enhanced Cytron 40Amp DC Motor Driver (Peak 80amp) MDS40B. Enhanced SmartDrive40 is an enhanced version of the MDS40A, it is designed to drive brushed DC motor, ranging from medium to high power motor with current capacity up to 80A peak and 40A continuously.
The MOSFETs are switched at 16 KHz to ensure quiet operation and no annoying whining sound. Besides, it also equipped with a microcontroller unit to provide smart features such as multiple input modes, current limiting, and thermal protection.
Specifications
| Driver Model | Cytron MDS40B |
| Peak Current (A) | Mar-00 |
| Continuous Current (A) | 12:00 AM |
| No. of Channels | Jan-00 |
| Operating Modes | PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: Yes Analog: Yes, RC Servo Signal: Yes |
| Over-Current Protection (A) | Yes |
| Thermal Protection | Yes |
| LED Indicator | Yes |
| Test/Manual Button | Yes |
| Cooling Fan | No |
| Arduino Sheild | No- can be used with Wire connection |
| Polarity Protection | NO |
| Dimensions in mm (LxWxH) | 105 x 106 x 38 (Actual driver board) 125 x 107 x 47(With the base) |
| Weight (gm) | 175 |
| Shipment Weight | 0.2 kg |
Features :
- Bi-directional control for a single brushed DC motor.
- Support motor from 10V to 45V.
- Maximum current up to 80A peak, reduce to 40A gradually according to temperature.
- 16 KHz switching frequency for quiet operation.
- LiPo battery low voltage warning.
- Thermal protection.
- Current limiting base on temperature.
- Multiple input modes: RC (Radio Control), Analog, PWM, Simplified Serial and Packetized Serial.
- On board push button for manual operation.
Package Includes:
- 1 x Enhanced Cytron 40Amp DC Motor Driver (Peak 80amp) MDS40B
