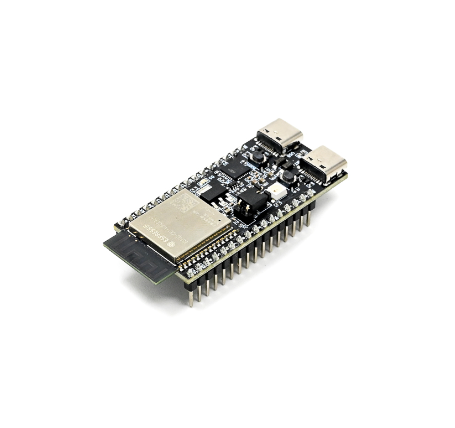

The Espressif ESP32-C61-DevKitC-1-N8R2 Development Board built around the ESP32‑C61‑WROOM‑1 module, designed for fast prototyping of advanced IoT applications. It features a single-core RISC‑V CPU running up to 160 MHz (120 MHz in mass-production revision), backed by 320 KB SRAM, 256 KB ROM, along with 8 MB QSPI flash and 2 MB PSRAM .
The Espressif ESP32-C61-DevKitC-1-N8R2 Development Board includes dual USB‑C ports (one native, one via USB‑UART/JTAG), two buttons, and an RGB LED, plus 25 GPIOs exposed through dual 16‑pin headers for breadboard compatibility It supports Wi‑Fi 6 (802.11ax 2.4 GHz) and Bluetooth 5 LE for flexible wireless connectivity. ESP‑IDF support simplifies development with SDK and example projects.
Specification
| Item Type: | Development Board |
| RAM Capacity: | 320 KB SRAM |
| Processor Type: | RISC‑V Single-Core |
| Model No.: | ESP32 C61 DevKitC 1 N8R2 |
| Microcontroller: | ESP32 C61 |
| Storage | 2 MB PSRAM, 8 MB QSPI Flash |
| CPU | 32-bit RISC‑V |
| Length (mm): | 57 |
| Width (mm): | 25 |
| Height (mm): | 15 |
| Weight (g): | 10 |
| Shipping Weight | 0.053 kg |
Features:
- Wi‑Fi 6 support (802.11ax, 2.4 GHz) and Bluetooth 5 LE for low‑latency, high‑performance wireless
- Onboard 8 MB QSPI flash + 2 MB PSRAM, ideal for memory-intensive IoT applications
- RISC‑V single‑core CPU at up to 120/160 MHz, with 320 KB SRAM and 256 KB ROM
- Dual USB‑C ports: one for native USB and JTAG; one via USB‑UART bridge (up to ~3 Mbps)
- Breadboard‑friendly headers with full GPIO breakout (≈25 pins including I²C, SPI, ADC)
- Built‑in RGB LED, JST jumper for current measurement, boot/reset buttons
- Power supply via USB‑C or header pins (5 V/3.3 V); onboard LDO regulator and power LED
- Full support in ESP‑IDF (v5.5+), ESP‑Matter SDK, with firmware options like ESP‑Hosted and ESP‑AT
Package Includes:
- 1 x Espressif ESP32-C61-DevKitC-1-N8R2 Development Board
