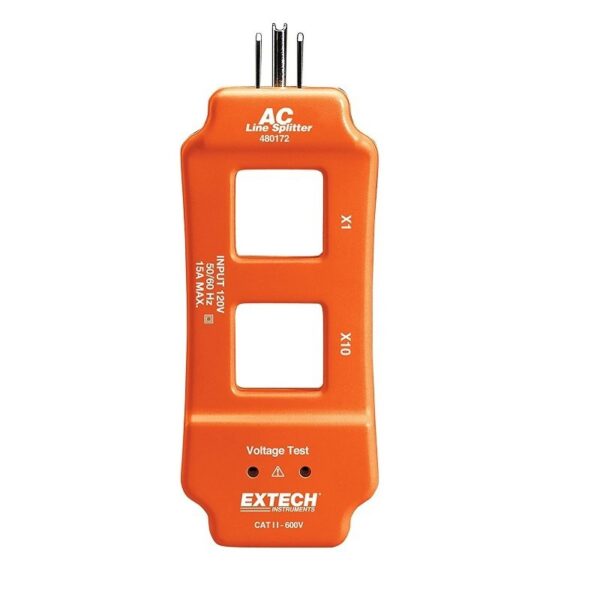

This Extech 480172 Line Splitter provides a fast and easy way to “open” standard 120 Volt AC electrical lines, eliminating the need to cut off the plug and separate the conductors. When connected between a 120 Volt AC outlet and a device under test, this splitter separates the hot/live conductor from the neutral and ground, which enables users to measure AC current up to 15 Amp on a two-wire or three-wire lines using a clamp meter. This splitter also features two Voltage Test jacks so that voltage can be measured using a multimeter.
Specifications
| Model | 480172 |
| Material | ABS |
| Maximum Voltage(V) | 120V +/‐10% |
| Maximum Operating Current (A) | 15 |
| Operating Temperature Range (°C) | 5 to 40 |
| Length (mm) | 133 |
| Width (mm) | 51 |
| Height (mm) | 25 |
| Weight (gm) | 342 |
| Shipment Weight | 0.37 kg |
Features:
- Provides easy and safe measurement of current without the
- need to cut off the plug and separate the conductors
- Plugging the power connector into the Line Splitter separates
- the hot/live conductor from the neutral (and ground)
- Voltage check function
- Two clamp positions:
- x 1 for direct readings
- x 10 for actual reading multiplied by 10
Package Includes:
- 1 x Extech 480172 AC Line Splitter
