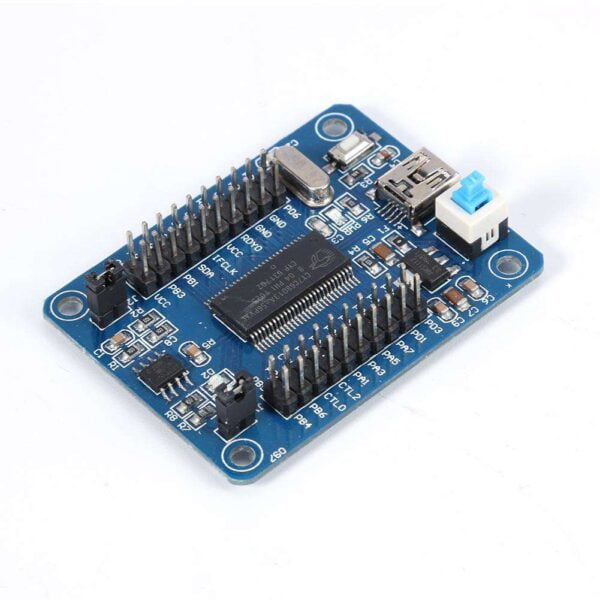

This EZ-USB FX2LP CY7C68013A USB Development Board Logic Analyzer provides an ideal tool for learning about the Cypress EZ-USB FX2LP Microcontroller. This development board breakout all the GPIO of the microcontroller; so it will be very convenient for learners to expand their own design.
It also uses the actual silicon for the entire development, Cypress’s software utilities and example firmware allow the user to generate USB traffic in hours, not weeks! For the very details, you can access the EZ-USBu017d Technical Reference Manual (TRM) at Here. For software collaterals download SuiteUSB.
Specifications
| ITEM NAME | CY7C68013A-56 EZ-USB FX2LP USB2.0 |
| Frequency | 48Mhz |
| RAM | 16KB |
| Length(mm) | 5500% |
| Width(mm) | 41 |
| Height(mm) | 1200% |
| Weight(g) | 15 |
| Shipment Weight | 0.018 kg |
Features:
- High-Speed USB2.0 specification at 480Mbps, compatible with USB 1.1
- Enhance Cypress EZUSB FX2LP processor CY7C68013A-56, with USB2.0 Core, high speed 8051 core, 16K RAM, GPIF interface, Slave FIFO interface
- Built-in IDE interface for IDE devices
- Powered by USB Port
- Compact Design
- Board Dimensions(LxWxH)mm: 55 x 41 x 12
Package Includes
- 1 x EZ-USB FX2LP CY7C68013A USB Development Board Logic Analyzer.
