The FlexiForce Prototyping Kit allows engineers and designers the freedom to plug their preferred circuit module(s), easily make sensitivity adjustments, and gain confidence in how a FlexiForce sensor will behave in their prototype. The open-source nature of this kit makes for a more efficient progression to field-testing and the final embedded design.
Specifications
| Input Voltage (V) | 9 |
| Analog Output | 0~5 V |
| Digital Output | Up to 10 bit (8-bit default) |
| Communication | USB |
| Operating Temperature Range (°C) | -10 to 55 |
| Length (mm) | 38 |
| Width (mm) | 66 |
| Height (mm) | 10 |
| Weight (gm) | 28 |
| Shipment Weight | 0.035 kg |
Features:
- The small and affordable kit saves engineers and designers the effort of building circuitry and other components for their FlexiForce-embedded proof-of-concept or prototype.
- Interchangeable analog circuit modules allow users to test the functionality of their FlexiForce sensors with ease.
- The open-source software interface allows users to control loading, record sensor data, adjust sensitivity, and calibrate the sensor.

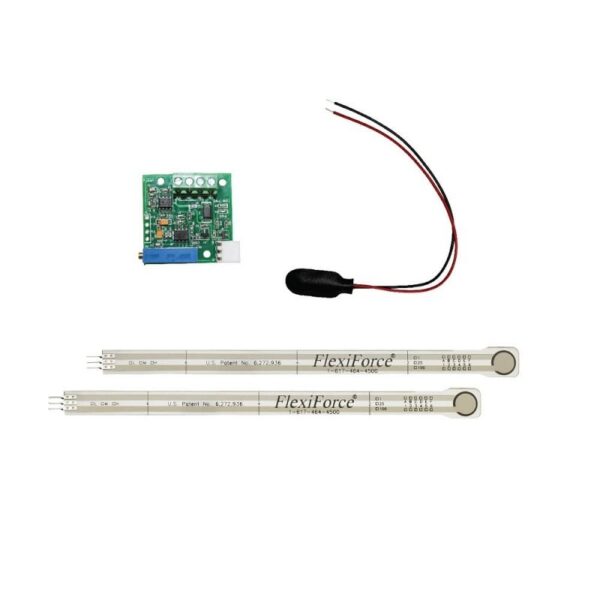

Package Includes:
- 1 x FlexiForce Prototyping Kit FLXPK1
