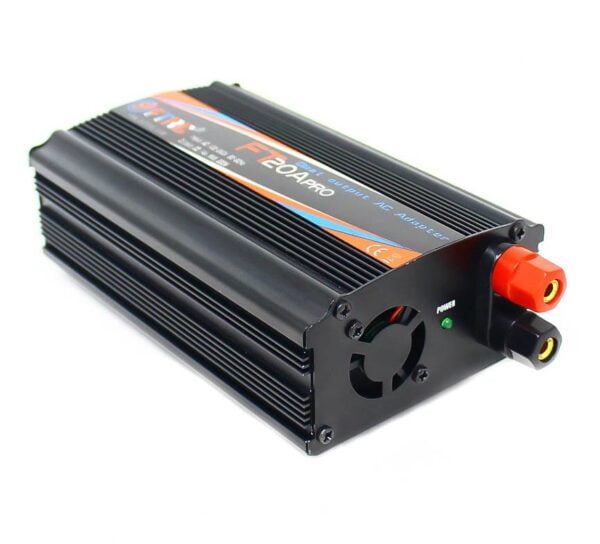

This is a high-quality FTRC FT20A Pro AC adapter that has AC input 100 ~ 240V, 50 – 60Hz and DC output 14V with max current 16A. It can deliver maximum power up to 220W. A 1.1m long connecting cable is available with this package. This adapter is mainly designed by considering the RC IMAX B6 series balance chargers.
This high-quality FTRC FT20A Pro AC adapter is compatible with IMAX B6, IMAX B6 twins, and IMAX B610. The design of this adapter comes with inbuilt heat sinks and fan to manage heat dissipation. It can manage max power of 220W, and rated power dissipation is 150W. This adapter has an on-off switch to control its supply.
This is a dual input single output adapter. It works on 100V as well as 240V AC input, we have to choose any one of mode manually using an inbuilt switch.
Specifications
| Model | FT20A Pro |
| Input AC supply (V) | 100-240V 50/60Hz |
| Output DC supply (V) | 14V |
| Rated Power (W) | 150 |
| Max Power (W) | 220 |
| Max output current (A) | 15 |
| AC connecting cable length (m) | 1.1 |
| Length (mm) | 170 |
| Width (mm) | 90 |
| Height (mm) | 55 |
| Weight (gm) | 580 |
Features :
- Suitable for the IMAX B6 series LiPo chargers.
- It has an inbuilt on-off switch.
- To select 100V and 240V AC input we have a switch.
- For the cooling purpose, we have an inbuilt fan as well as the whole outer case is made up of heat sink fins.
Package Includes :
- 1 x FTRC FT20A Pro AC Adapter DC 14V 220W Output for RC IMAX B6 Balance Charger.
