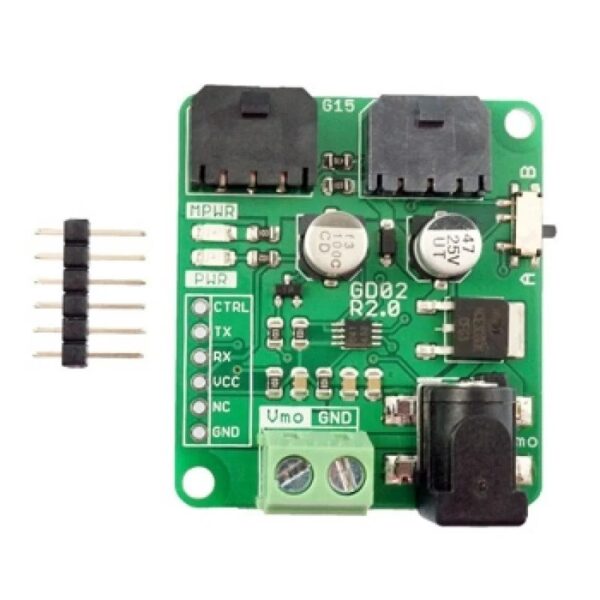

This is G15 Driver for G15 Cube Servo. G15 Driver (GD02) is used to drive G15 Cube Servo. It is a Full to Half Duplex Communication Converter board. It converts UART full-duplex communication to half-duplex single line communication which is required by G15 Cube Servo.
GD02 has two ports for the Cube Servo. G15 Cube servo is a serially controlled servo motor which can be daisy-chained. G02 has a separated port connector for motor’s power supply. GD02 offers a simple and easy way to use to control G15
Specifications
| UART Voltage(V) | 3.3 to 5 |
| Motor Voltage(V) | 7 to 15 |
| Maximum Continuous Current(A) | 12:00 AM |
| Length (mm) | Feb-00 |
| Width (mm) | 43 |
| Height (mm) | 13 |
| Weight (gm) | 12 |
| Shipment Weight | 0.016 kg |
Features :
- 2 x G15 Cube Servo ports (can be daisy chained to more servos)
- External power terminal for Cube Servo.
- 2 LEDs as logic power and servo power indicators.
- 3.3V and 5V signals compatible.
Package Includes :
- 1 x G15 Driver
- 1 x 1*6 Burg Pin(Straight)
