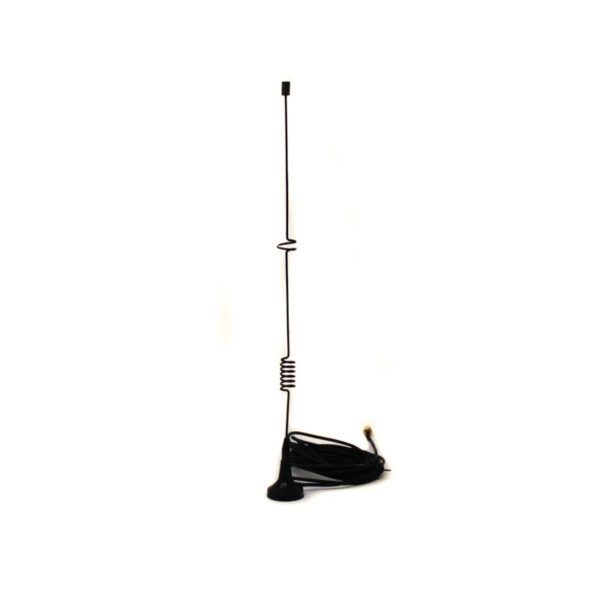

This is GSM 4G/3G/2G LTE Flexible Magnetic Mount Antenna having Frequency of 698 – 960 MHz & 1710 – 2690 MHz and 6/ 7 dBi Gain. This antenna is supported to GSM FCT of Micromax, and other GSM Module/Modems. Magnetic mount antennas are commonly used for car and truck applications. The antenna’s magnetic base sticks securely to the metal of the vehicle. The metal surface of the car acts as a ground plane to bounce the signal. Since magnetic mount antennas require a ground plane, they should be mounted on metal.
Specifications
| Frequency (MHz) | 698 – 960 MHz & 1710 – 2690 MHz |
| Gain | 6/ 7 dBi (with 1m cable) |
| Impedance (Ω) | 50 |
| VSWR | < 2.5 |
| Polarization | Linear |
| Power Handling (W) | 50 |
| HPBW | H: 3600 ; V: 300 / 400 |
| Connector | SMA-Male |
| Operational Temperature | -30° to 60° C |
| Humidity | 5 – 75% |
| Housing | Spring Steel Powder Coated |
| Dimension (mm) | 310 x φ27 |
| Weight | 75g (depends on cable length) |
| Shipment Weight | 0.1 kg |
Features:
- Magnetic base indoor antenna.
- High quality
- low cost.
- 20xφ2mm Neodymium powerful magnets.
- Chrome-plated available for 1K+ order quantity.
Package Includes:
- 1 x GSM 4G/3G/2G LTE Flexible Magnetic Mount Antenna
