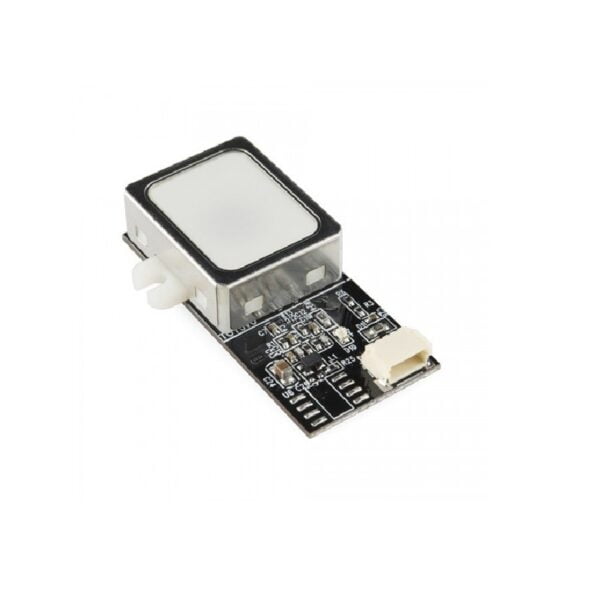

GT511C3 Optical Fingerprint Scanner Module with cable

Specifications:

• Model: GT-511C3
• Operating Voltage(VDC)               :  3.3 to 6
• CPU:      ARM Cortex M3 Core(Holtek HT 32F2755)
• Sensors                : Optical
• Image Size:  202 x 258 Pixel
• Resolution:  450 DPi
• Effective Scanning Area(mm): 20 x 16
• False Acceptance Rate (FAR): 0.001%
• False Rejection Rate(FRR): < 0.1%
• Operating Temperature                : -20°C ~ 60°C
• Default Baud Rate: 9600bps
• Dimensions(mm): 37 x 17 x 9.5
• Weight (gm)       : 6
• Shipment Dimensions    :   4 × 4 × 3 cm

The GT511C3 Optical Fingerprint Scanner Module with JST SH Connector is a high-performance fingerprint scanner. Which is useful for to access control, security, identification, and convenience. This optical sensor module is designed for easy integration into applications with serial interface (UART). We need two wires are for TX and RX and two wires for power supply (5V).

GitHub click here
