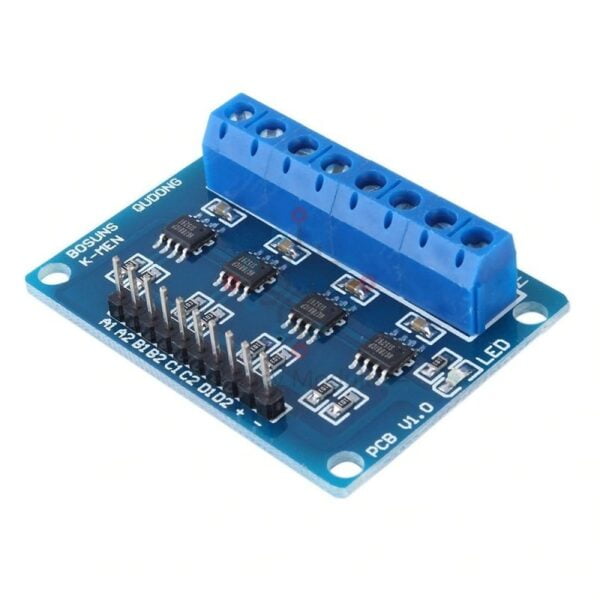

This HG7881 4-Channel dc motor driver module comes with its own four L9110S chip. It can drive 4 DC or Can drive two 4-wire 2-phase stepping motor.
Specifications
| Model | HG7881. |
| Module supply voltage | DC 2.5-12V. |
| Compatible Motor | DC motor or stepper motor (working voltage 2.5-12V maximum current 0.8A). |
| No. of Channels | Jan-00 |
| Length (mm) | 48 |
| Width (mm) | 37 |
| Height (mm) | 10 |
| Weight (gm) | 15 |
| Shipment Weight | 0.018 kg |
Features:
- Perfect for driving DIY smart car robot motor.
- You can drive 4 DC motors or two 4-wire 2-phase stepping motor.
- Suitable Motor range: between motor operating voltage 2.5v-12V, the maximum operating current of 0.8A.
Package Includes:
- 1 x HG7881 4-Channel DC 2.4-10V Motor Driver Broad
