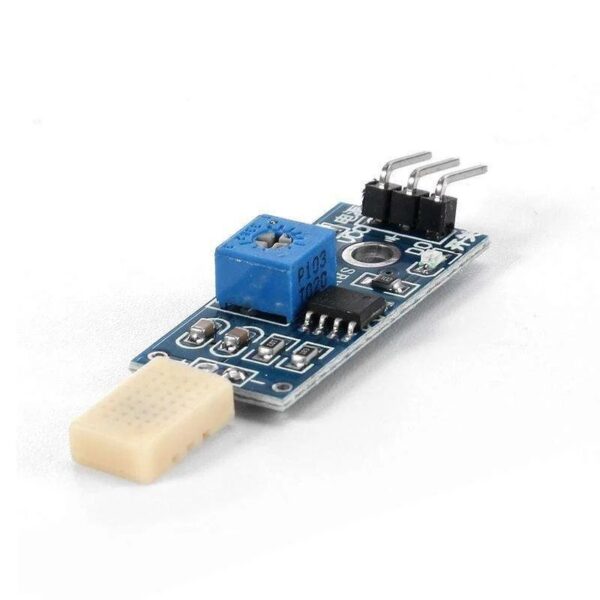

Using high-quality HR202 humidity sensor. The comparator output signal is clean, good waveform, driving ability, more than 15mA
The humidity sensor module is sensitive to environmental humidity, generally used to detect ambient humidity by adjusting the potentiometer, for detecting the humidity can change the threshold ( i.e. the humidity control), such as the need to control the ambient humidity of 60% ,then the corresponding module is transferred to the green light and humidity environment , DO high power output when flat, humidity values below this setting, high output, the green light does not shine
DO output can be directly connected to the microcontroller through the microcontroller to detect high and low, thereby detecting the humidity changes in the environment.
Specifications
| IC Chip | HL-01 |
| Operating voltage (v) | 3.3 ~ 5V DC |
| Operating Current | 15mA |
| Humidity Range | 20 ~ 95%RH |
| Output Digital | 0V or 5V, |
| Length (mm) | 20-Feb |
| Width (mm) | 15 |
| Height (mm) | 7 |
| Weight (gm) | 0:00 |
| Shipment Weight | 0.01 kg |
- Adjustable Sensitivity, External GND.
- Detect Ambient Humidity.
- Provided with Fixed Bolt Hole, Convenient to Install.
- Power Indicator Light & Digital Output Indication Lamp.
- Using LM393 Chip for Stable Work.
- DO Small Digital Outputs Interface (0 & 1).
- Adjustable trigger level from preset.
- LEDs indicating output and power.
Package Includes:
- 1 x HR 202 Humidity Detection Sensor Module.
