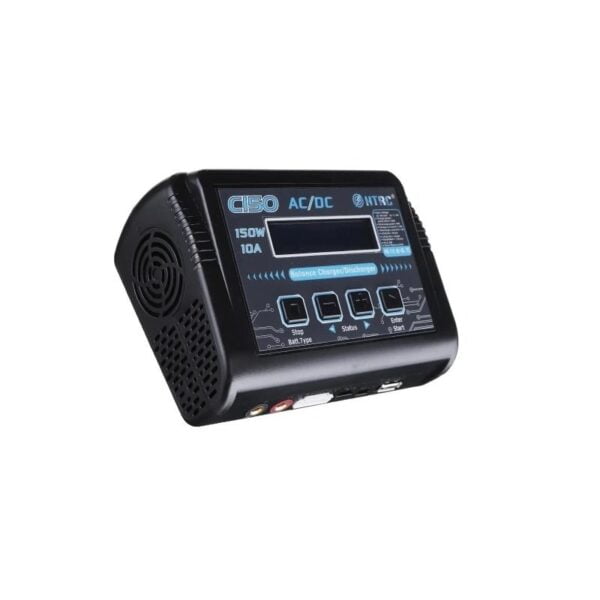

The HTRC C150 150W 10A LiPo LiFe NiMh Battery Charger/Discharger (Original) is a multi-charger, supports charge, discharge, storage, and balance charge functions. Its 1602 LCD screen displays the cell voltage. It can automatically identification of battery sections. C150 employs an individual-cell-voltage balance.lt isn’t necessary to connect an external balancer for balance charging.
Specifications
| Model | HTRC C150 |
| Input | AC 100-240V / DC 11-18V |
| Charge power | Max 150W |
| Discharge power | 10W |
| Charge current | 0.1-10A |
| Discharge current | 0.1-2A |
| Lilon/LiPo/LiFe/LiHV cell count | 1-6cells |
| NiCd/NiMH battery cell count | 1-15cells |
| PB Battery voltage | 2-20V |
| Smart battery | I/II/III |
| Current drain for balancing | 500mA/cell |
| Colour | Black |
| Net Weight (gm) | 490 |
| Length (mm) | 145 |
| Width (mm) | 105 |
| Height (mm) | 64 |
| Weight (gm) | 490 |
| Shipment Weight | 0.52 kg |
Features:
- Compact charger, easy to carry, easy to use
- Practical for a variety of batteries
- Automatic identification of Li-Po batteries cells counts
- Built-in cool fan for easy heat dissipation
- Multi-extra function:
- TVC (Terminal voltage control): The Charger allows the user to set the charge/discharge end voltage
- Lithium Battery internal Resistance Check: can display each cell’s resistance. (does not support 1s battery)
- Balancer: individual-cell-voltage balancing, cell voltage Monitoring
- 5V 2.1A USB port
- Data storage and loading
- Battery break in and cycling
- Maximum Safety: Automatic charge current limit, capacity limit, processing time limit, temperature threshold
- Firmware update
Package Includes:
- 1 x HTRC C150 150W 10A LiPo LiFe NiMh Battery Charger (Original)
- 1 x Banana to T-connector-male Adapter Charge cable
- 1 x T-connector-female to XT60-male Adapter charge cable
- 1 x T-Connector-Female to Crocodile Pin Adapter Charge Cable
- 1 x T-Connector-Female to Molex Male connector Adapter Charge Cable
- 1 x Balance Board with Cord
- 1 x XT60 male to Crocodial Pins charge cable (30 CM)
- 1 x Power Cable
- 1 x Instruction Manual
