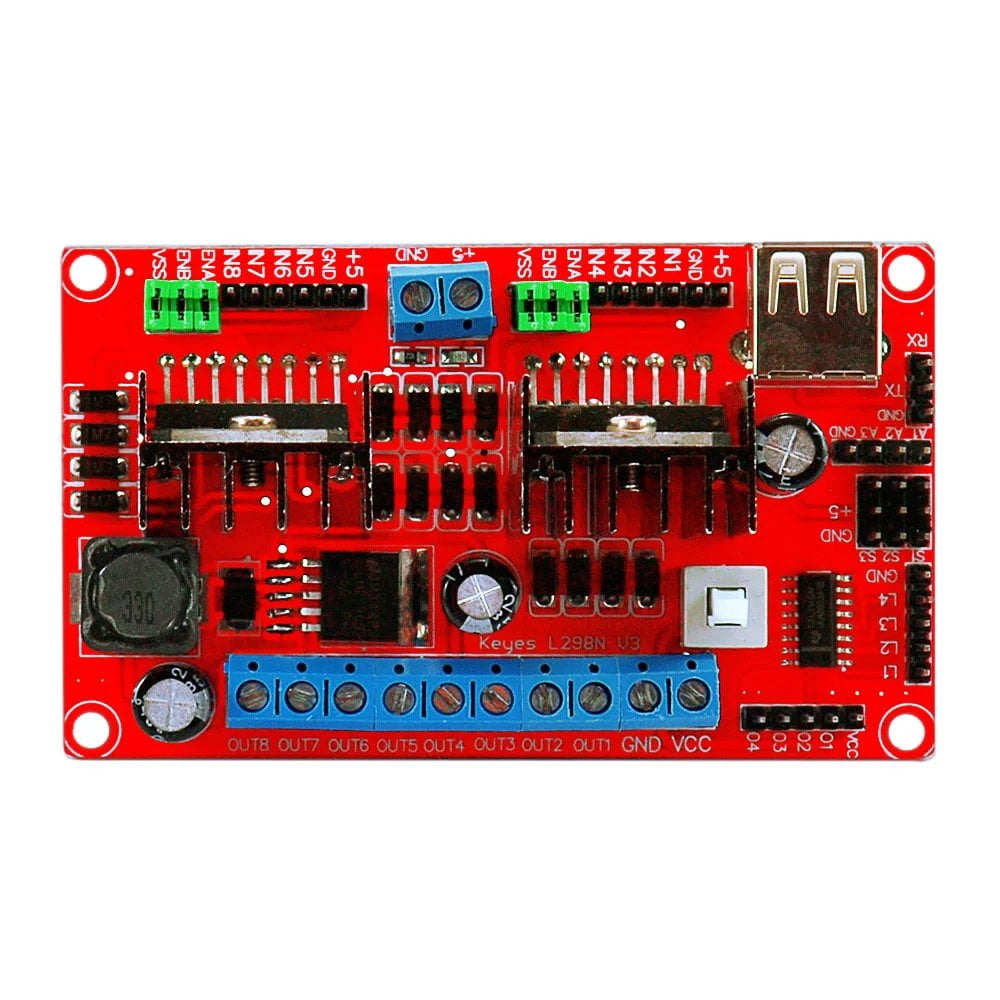

This dual L298N driver module uses ST’s L298N new original chip. It has high stability SMT process, with high-quality electrolytic capacitors to make the circuit work stably. It can directly drive two 3~30V DC motor. and it provides a 5V output interface (the min input is 6V) to power for 5V single-chip circuit (low ripple factor). It also supports 3.3V MCU ARM control and so you can easily control the speed and direction of DC motor, and control the 2-phase stepper motor, 5-wire 4-phase stepper motor.
Specifications
| Driver Chip | L298N dual H-bridge DC motor driver chip |
| Peak Current (A) | 2 |
| Power Supply of Driving Terminal | + 5V~+ 30V (the range is + 6V~+30V if taking Internal power) |
| Operating Current of Logical Part | 0 ~ 36mA |
| Control Signal Input Voltage (IN1 IN2 IN3 IN4) Low level: | -0.3V≤Vin≤1.5V |
| Control Signal Input Voltage (IN1 IN2 IN3 IN4) High level: | 2.3V≤Vin≤Vss |
| Enable Signal Input Voltage (ENA ENB) Low level: | -0.3≤Vin≤1.5V (control signal is invalid) |
| Enable Signal Input Voltage (ENA ENB) High level: | 2.3V≤Vin≤Vss (control signal is active) |
| Max Power Consumption | 20W (when the temperature T = 75 °c) |
| Storage Temperature | -25 °c ~ + 130 °c |
| Length (mm) | 90 |
| Width (mm) | 54 |
| Height (mm) | 25 |
| Weight (gm) | 67 |
| Shipment Weight | 0.07 kg |
Features:
- This drive module integrates the two L298N chip, it can drive four DC motors (reversible, can use PWM to control speed) or two stepper motors.
- It integrates LM2596 DC-DC voltage regulator chip (which can output 5V, can power for the SCM, servos, sensor, router. the battery can up to 2A).
- In addition to the two pieces L298N chip on the board, and then integrate a ULN2003 can drive one more stepper motor, or four DC motors (start and stop, not reversible). For example, when making fire-fighting robot, it can control extinguishing fan, not need external circuit.
- Integrated servo interface, leads to the signal terminal, it’s convenient to dock with SCM.
- Integrated USB connector, which can be directly powered by plugging into the router.
- Apply to W703N, WIFI car router modification. inserting USB, leading out the RXD TXD through pins, it is convenient to communicate with its own SCM.
- 5V DC output leading-out terminal (terminal, pin), it’s convenient to power for the 5V external devices.
Package Includes:
- 1 x L298N V3 FOUR DC MOTOR DRIVER
