Give the power of Ethernet to any simple device and convert it into IoT enabled module by adding this compact and powerful Ethernet communication to I2C conversion adapter. The Lantronix XPort communications module converters Ethernet to serial data. Serial is then converted to I2C for communications to IoT devices. This provides a reliable Ethernet control solution for any IoT devices.
Specifications
Core Processor | DSTni-EX |
Co-Processor | XPort AR |
Connector Type | RJ45 |
Flash Size | 512KB |
Module/Board Type | MPU Core |
Operating Temperature | -40°C ~ 85°C |
RAM Size | 256KB |
Speed | 25MHz |
Length (mm) | 34 |
Height (mm) | 12 |
Width (mm) | 16.15 |
Weight (g) | 9 |
Shipment Weight | 0.014 kg |
Features:
- The only complete, integrated solution in an RJ45
- form factor
- Embedded webserver
- 10/100Mbit Ethernet – Auto-Sensing
- Stable, field-proven TCP/IP protocol suite and web-based application framework
- Easy configuration through a web interface
- Easy customization of HTML web pages and configuration screens
- Interactive web pages through the use of Java applets
- High-performance processor (12 MIPS at 48 MHz, 22 MIPS at 88 MHz)
- Network overhead handled by XPort unit
- Password protection
- Upgrade XPort module’s firmware over the network
Package Includes:

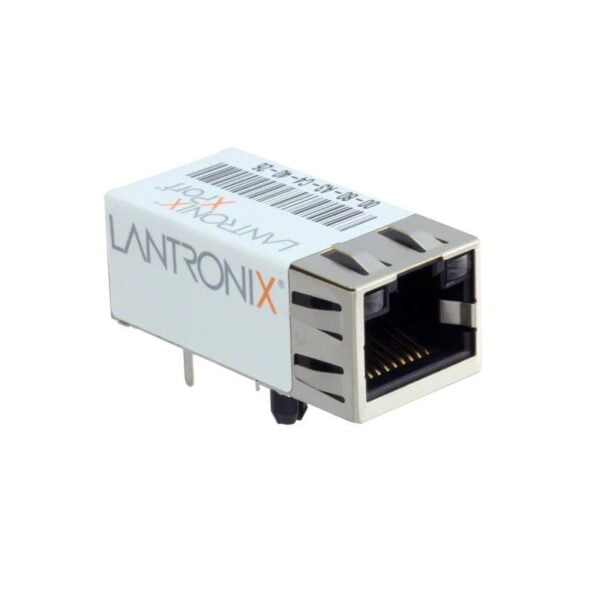

- 1 x LANTRONIX Xport Embedded Serial to Ethernet Device Server
