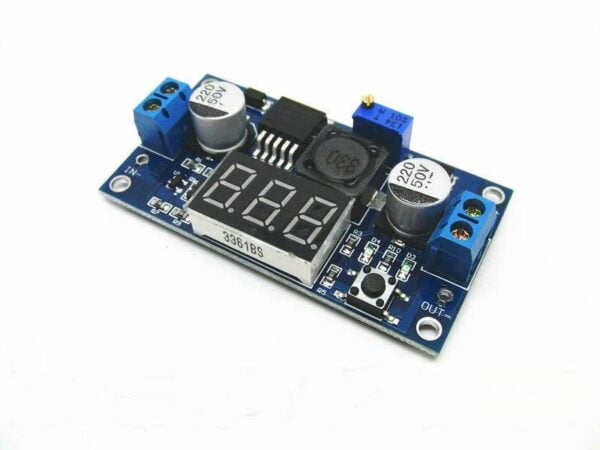

This is LM2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3 ~ 37V, it comes with a built-in voltmeter display and uses an advanced microcontroller.
Together with its high precision multi-turn potentiometer, this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boasts a very high operating range with a DC input supply range of 4 ~ 40V and an adjustable output range of 1.3 ~ 37V.
Specifications
Input Voltage (V) | 4 ~ 40 VDC |
Output Voltage (VDC) | 1.3 ~ 37 |
Max. Output Current (A) | 2 |
Switching Frequency(KHz) | 15000% |
Operating Temperature (°C) | -40 to 90 |
Length (mm) | 62 |
Width (mm) | 34 |
Height (mm) | 12 |
Weight (gm) | 22 |
Shipment Weight | 0.025 kg |
Features :
- Input reverse polarity protection
- Built-in output short protection function
- The built-in thermal shutdown function
- Press the right key to let the display show the input or output voltage. when the right “OUT” led light, it shows output, the left “IN” led show input.
- Power-off memory function, show that road after power voltage values measured for the last time
- Press the touch button for 3 seconds to turn off the LED display, touch the button again to turn on the LED display
- The band terminals, no iron can also be easy to use, and retention wire connection point
Package Includes :
- 1 x LM2596 2A Buck Step-down Power Converter Module.
