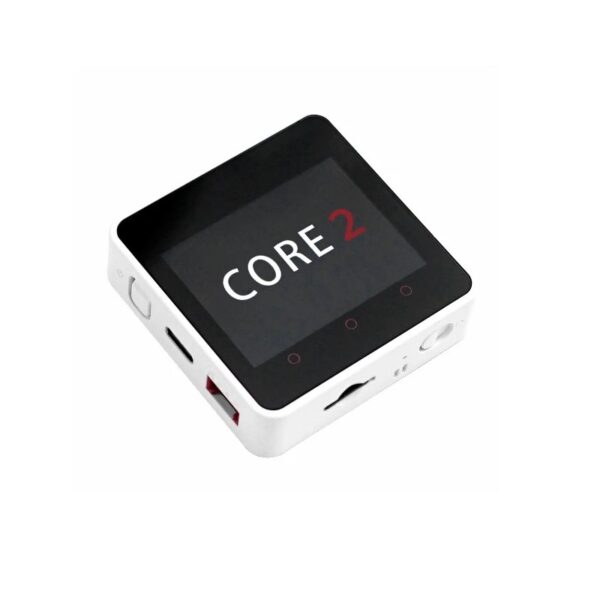

M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.
The MCU is an ESP32 model D0WDQ6-V3 and has dual core Xtensa 32-bit 240Mhz LX6 processors that can be controlled separately. WiFi and Bluetooth are supported as standard and it includes an on board 16MB Flash and 8MB PSRAM, USB TYPE-C interface for charging, downloading of programs and serial communication, a 2.0-inch integrated capacitive touch screen, and a built-in vibration motor.
M5Core2 also features a built-in RTC module which can provide accurate timing. The power supply is managed by an AXP192 power management chip, which can effectively control the power consumption of the base and a built-in green LED power indicator helps to notify the user of battery level. The battery capacity has been upgraded to 390mAh, which can power the core for much longer than the previous model.
The M5Core2 retains the SD card slot and speakers. However, in order to ensure higher quality sound output, the I2S digital audio interface power amplifier chip is used to effectively prevent signal distortion. There are independent power and reset buttons on the left side and bottom of the base.
The 3 icons on the front of the screen are capacitive buttons which are programmable. There is a small expansion board on the back of the base with a 6-axis IMU sensor and microphone. The development platform and programming language supported by M5Stack Core2: Arduino, UIFlow (using Blockly, MicroPython language) No matter what level of your development and programming skills, M5Stack will help You gradually turn your ideas into reality.
Specifications
| Memory | 16MB Flash |
| 8MB PSRAM | |
| Operating Voltage (VDC) | 5 |
| Operating Current (A) | 0.5 |
| Interface | GROVE(I2C+I/0+UART) x 1 |
| TypeC x 1 | |
| LCD Screen | 2.0″@320*240 ILI9342C |
| Touch Screen | FT6336U |
| Speaker | 1W-0928 |
| Battery | Lithium Battery 3900mAh @ 3.7V |
| Operating Temperature (°C) | 0 to 40 |
| Length (mm) | 54 |
| Width (mm) | 54 |
| Height (mm) | 16 |
| Weight (gm) | 80 |
| Shipment Weight | 0.084 kg |
Features:
- ESP32-based, built-in Bluetooth,WiFi
- 16M Flash，8M PSRAM
- Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
- TF card slot (16G Maximum size)
- Built-in lithium battery, equipped with power management chip
- Independent small board built-in 6-axis IMU, PDM microphone
- M-Bus Socket & Pins
- Program Platform: UIFlow, MicroPython, Arduino
Package Includes:
- 1 x M5Stack Core2 ESP32 IoT Development Kit
- 1 x Type-C USB(20cm)
