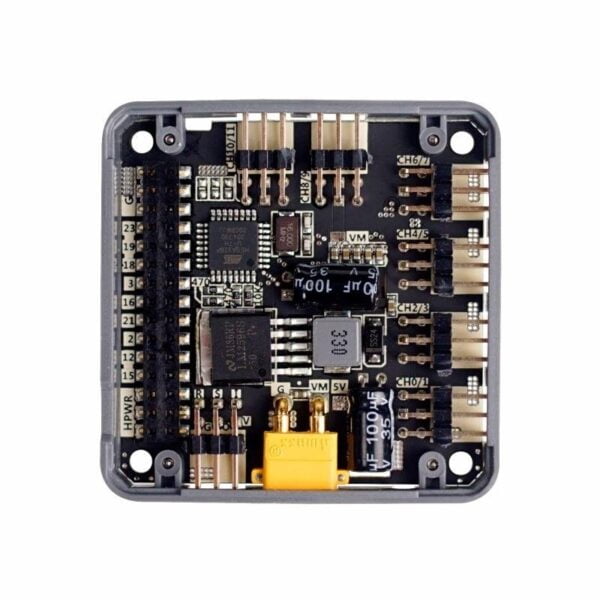

The Servo Module is made to implement the best, easiest way to drive Servo motors. This M5 module will make quick work of your next Servo project! It is able to drive multiple Servo motors, up to 12 channels(Max load:14W). We also added a DC input for the power supplement. Through M-BUS the DC can automatically power the M5 core at the top. Servo is powered by MEGA328 communicates via I2C(0x53).
Specifications
On Board Controller | ATMega 328 |
Interface | I2C |
Connector Type | XT 30 Female |
Length (mm) | Feb-00 |
Width (mm) | 54 |
Height (mm) | 13 |
Weight (gm) | 25 |
Shipment Weight | 0.05 kg |
Features:
- 12x servo ports
- DC power input: 5-7V
- DC Connector Type: XT30 (female)
- Power adapter interface: 5.5mm x 2.1mm
Package Includes:
- 1x M5Stack Servo Module
- 1x Common Male to XT30 Male DC convertor
