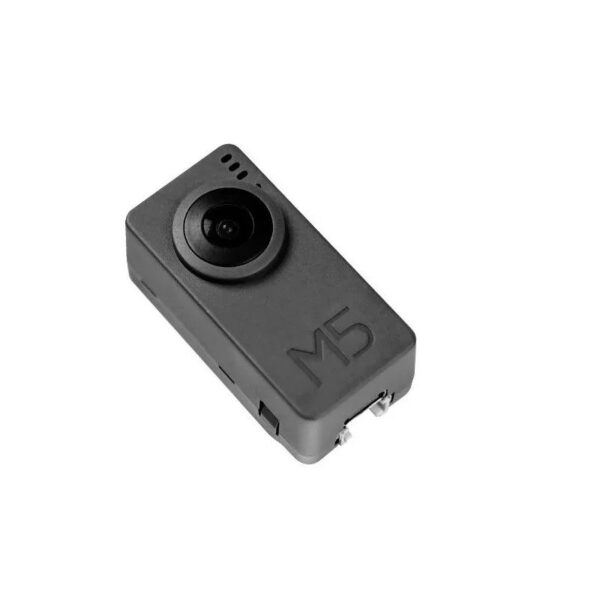

The Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0-megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048×1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled.
Specification
| Flash | 4M |
| Battery | 270 mAh |
| Image Sensor | OV3660 |
| Maximum resolution | 3M pixels |
| Output format | 8-/10-Bit RAW, RGB and YCbCr output, compression |
| DOV | 120° |
| Shipment Weight | 0.046 kg |
Features:
- Design based on esp32
- Wi-Fi image transmission
- Timed sleep wake up
- Status indicator
- Ultra-low power design
- Built-in 270mAh battery
- Programming platform:ESP-IDF/Arduino/UIFlow
Package Includes:
- 1 x M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
