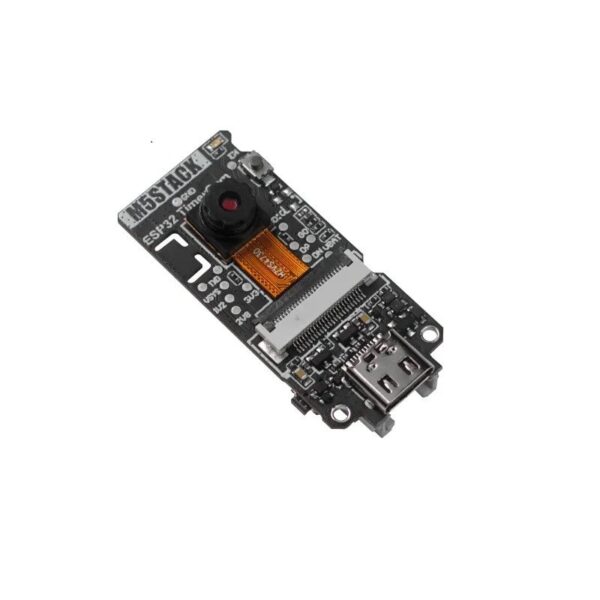

M5STACK ESP32 PSRAM Timer Camera (OV3660)

Timer Camera is a camera module based on the ESP32 with 8MB integrated with PSRAM. The 3 million (3MP) pixel camera (ov3660) ,DFOV 66.5 ° and can shoot a maximum of 2048×1536 resolution photos. There is a LED status indicator and reset button on the board. The timer Camera is designed to have ultra-low power consumption. Using the RTC (BM8563), timing, sleep, and wake-up functions can be utilized.

Specifications:

• PSRAM: 8MB
• Flash: 4M
• Image Sensor: OV3660
• Maximum resolution: 3M pixels
• Output format: 8-/10-Bit RAW, RGB and YCbCr output, compression.
• DFOV: 66.5°
• Battery Interface Specifications: SH1.0-2P

Features:

• Design based on ESP32
• Wi-Fi image/video transmission
• Timed sleep wake up
• Status indicator
• Ultra-low power design
• Programming platform:ESP-IDF/Arduino/UIFlow

Package Includes:

• 1 x M5STACK ESP32 PSRAM Timer Camera (OV3660)
