A voice and audio focused development board with an 8 microphone array that enables you to create your own audio driven applications or use voice assistants such as Amazon Alexa, Google Assistant, PocketSphinx, etc.

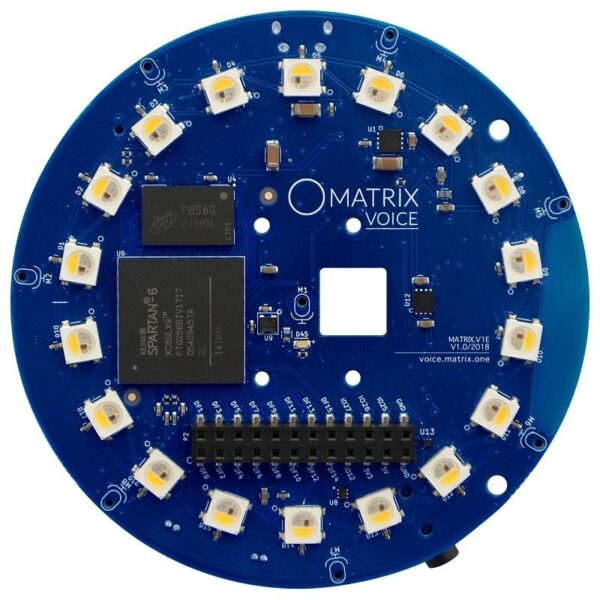

MATRIX Voice is a development board for building sound driven behaviors and interfaces. MATRIX Voice is an open-source voice recognition consisting of a 3.14″ diameter development board with an onboard ESP32 WiFi microcontroller, a radial array of 7 MEMS microphones, a Xilinx Spartan6 FPGA with 64 Mbit SDRAM, 18 RGBW LEDs, and 64 GPIO pins. The Matrix Voice provides developers the opportunity to integrate custom voice & hardware-accelerated machine learning technology right onto the silicon. The energy-efficient ESP32 allows for operation without an attached SBC and can be programmed with the Arduino IDE.
It makes it perfect for battery-powered deployment and industrial IoT applications. MATRIX Voice was built with a mission to give every maker, tinkerer, and developer around the world a complete, affordable, and user-friendly tool for simple to complex Internet of Things (IoT) voice app creation.
Specifications
| FPGA | Xilinx Spartan 6 XC6SLX9 |
| Microphone Array | 8MEMSMP34DB02 audio sensor |
| digital microphones | |
| Everloop | 18 RGBW LEDs |
| RAM | 64 MB 132MHz SDRAM |
| FLASH | 64Mbit Flash Memory |
| ESP32 (MCU w/WiFi/BT) (Optional) | Wifi 2.4Ghz 802.11bgn – BT 4.0 LE – |
| Microcontroller Tensilica Xtensa dual-core | |
| 32-bit LX6 | |
| Module Diameter(mm) | 79.5 |
| Weight(g) | 70 |
| Shipment Weight | 0.075 kg |
Features:
- Xilinx Spartan 6 XC6SLX9 FPGA
- 7 x MEMSMP34DB02 audio sensor digital microphone array
- 18 x RGBW LEDs
- 64MByte 132MHZ SDRAM
- 64Mbit Flash Memory
- Wifi 2.4Ghz 802.11bgn – BT 4.0 LE
- Tensilica Xtensa dual-core 32-bit LX6 microcontroller
Package Includes:
- 1 x Matrix Voice/Audio Assistant IoT Development Platform with ESP32 Wireless Module
