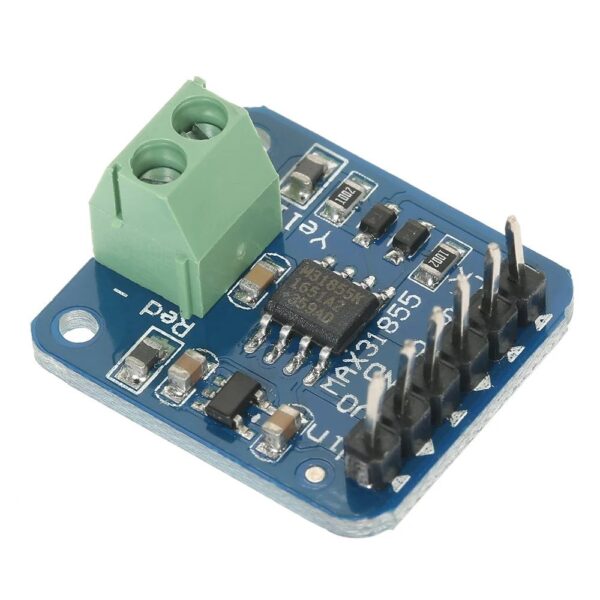

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The MAX31855K does everything for you and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors, and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).
Specifications
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Accuracy | 0.25 degree temperature |
| Interface | SPI |
| Temperature Measuring Range (°C) | -200 to 1350 |
| Resolution | 14 bit |
| Length (mm) | 20-Jan |
| Width (mm) | 20 |
| Height (mm) | 3.2 |
| Weight (gm) | 7:55 |
| Shipment Weight | 0.002 kg |
Features:
- Works with any K type thermocouple
- Will not work with any other kind of thermocouple other than K type
- -200°C to +1350°C output in 0.25-degree increments – note that K thermocouples have about ±2°C to ±6°C accuracy
- Internal temperature reading
- 3.3 to 5v power supply and logic level compliance!
- SPI data output requires any 3 digital I/O pins.
Package Includes:
- 1 x MAX31855 K-type thermocouple module
