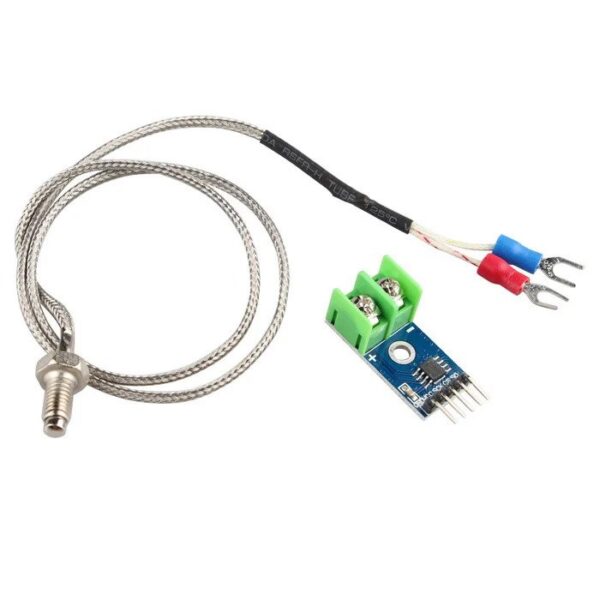

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.
It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.
Specifications
| Model | MAX6675 |
| Operating Voltage (VDC) | 3 ~ 5.5 |
| Temperature Range(°C) | 0 to +1024 |
| Cold Junction Compensation Range(°C) | -20 to +80 |
| Resolution | 0.25°C |
| Shipment Weight | 0.05 kg |
Features :
- Internal integrated cold junction compensation circuit;
- Temperature signal can be converted into 12-bit digital
- Embedded thermocouple break detection circuitry.
- K-type temperature probe
- Simple SPI serial output temperature.
- High impedance differential inputs.
- Thermocouple break detection.
- 2000V of ESD signal.
Package Includes :
- 1 x MAX6675 Module.
- 1 x K type Thermocouple.
- 4 x F-F Jumper Cable.
