                                                                                                                                                    HomeSensorsUltrasonic SensorMAXBOTIX Ultrasonic Sonar Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor

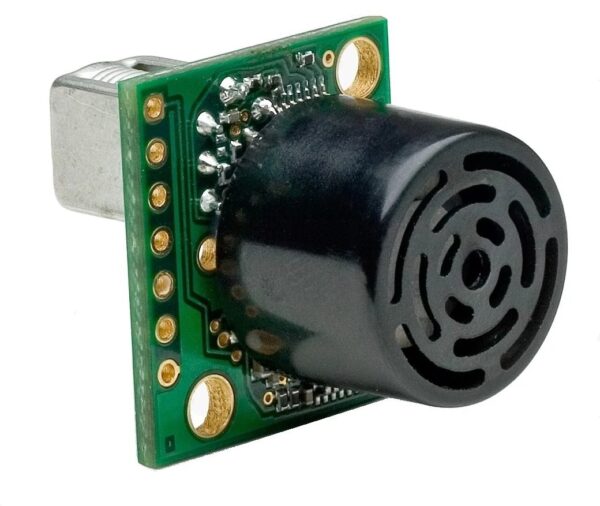

                                                                                                                                                    Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor

                                                                                                                                                    ₹2,824.00 (Exclusive GST Tax 18%)

                                                                                                                                                    Available Offers
                                                                                                                                                    • ► Free Shipping By Bluedart Air  : On over value Rs.3000
                                                                                                                                                    • ► Bulk Quantities discount :  send mail on sales@compoindia.com
                                                                                                                                                    • ► Tax invoice  : Get GST invoice and save up to 18% on business purchases

                                                                                                                                                    Note : Customer Don't need to pay any extra charge like custom duty and any other cost. Have to pay only GST with price.

                                                                                                                                                    Out of stock

                                                                                                                                                    ► Bulk Quantities discount :  send mail on sales@compoindia.com



                                                                                                                                                    Great price on bulk order

                                                                                                                                                    Secure Payment

                                                                                                                                                    Fast & Quick Delivery

                                                                                                                                                    7 days Return Policy

                                                                                                                                                    More on shipping and other trade services
                                                                                                                                                    safety-delivery

                                                                                                                                                    Your Safety is our Priority

                                                                                                                                                    India, we care for you and are here for you
                                                                                                                                                    Know More

                                                                                                                                                    Help us improve your shopping experience

                                                                                                                                                    Write your Feed Back

                                                                                                                                                    review

                                                                                                                                                    Can't find what you are looking for?

                                                                                                                                                    Let Us Know
                                                                                                                                                    Add to wishlist
                                                                                                                                                    SKU: L21933 Category: MAXBOTIX Ultrasonic Sonar
                                                                                                                                                    Share
                                                                                                                                                    close
                                                                                                                                                    compoindia | Robotics parts store | Development boards | Raspberry Pi | Display
                                                                                                                                                    4.9
                                                                                                                                                    Based on 130 reviews
                                                                                                                                                    powered by Google
                                                                                                                                                    review us on
                                                                                                                                                    Melford Mutara
                                                                                                                                                    11:21 11 Dec 23
                                                                                                                                                    I was very happy about the servicesGood customer care
                                                                                                                                                    tafadzwa chipere
                                                                                                                                                    11:20 11 Dec 23
                                                                                                                                                    Excellent services
                                                                                                                                                    Bhavin Ambaliya
                                                                                                                                                    10:40 11 Dec 23
                                                                                                                                                    2021 01126
                                                                                                                                                    06:13 23 Nov 23
                                                                                                                                                    the owner helped a lot with our project and explained all the components .
                                                                                                                                                    Aadi Jain 20220301003
                                                                                                                                                    05:27 01 Nov 23
                                                                                                                                                    Gaddam Dinesh
                                                                                                                                                    08:23 07 Oct 23
                                                                                                                                                    Product and service well
                                                                                                                                                    Ishwariya Mathivanan
                                                                                                                                                    17:39 06 Oct 23
                                                                                                                                                    The person responded instantly even after office hours ! Excellent service and extremely fast delivery!!!
                                                                                                                                                    RAVAL DIPAK V.
                                                                                                                                                    14:07 02 Jan 23
                                                                                                                                                    Very good staff. Best price affordable and best quality. Almost all parts like Arduino, raspberry and their components are available. Also Delivery is also quick.
                                                                                                                                                    js_loader
                                                                                                                                                    • Description
                                                                                                                                                    Description

                                                                                                                                                    This Maxbotix MB1240 XL-MaxSonar-EZ4 High-Performance Ultrasonic Sensor Module is for indoor use only.

                                                                                                                                                    Features of the MB1240, XL-MaxSonar-EZ4, include centimeter resolution, has the highest noise tolerance and the narrowest beamwidth of any sensor in the XL‑MaxSonar‑EZ sensor line, short to long-distance detection, range information from 20cm to 765cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

                                                                                                                                                    The MB1240 is a great choice for applications where only larger objects need to be detected.

                                                                                                                                                    The MB1240 from the XL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

                                                                                                                                                    Specifications

                                                                                                                                                    ModelMB1240
                                                                                                                                                    Operating Voltage (VDC)3.3 ~ 5.5
                                                                                                                                                    Average Current Consumption (mA)3.4
                                                                                                                                                    Frequency(Hz)42000
                                                                                                                                                    Resolution1 cm
                                                                                                                                                    Read Rate (Hz)10
                                                                                                                                                    Max. Sensing Distance (cm)765
                                                                                                                                                    Sensor Cover Dia. (mm)16
                                                                                                                                                    PCB Size ( L x W ) mm20 x 22.5
                                                                                                                                                    Weight (gm)6
                                                                                                                                                    Shipment Weight0.01 kg

                                                                                                                                                    Features :

                                                                                                                                                    • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
                                                                                                                                                    • Virtually no dead zone, objects closer than 20 cm range as 20 cm
                                                                                                                                                    • Small, lightweight module
                                                                                                                                                    • Designed for easy integration into your project or product
                                                                                                                                                    • Real-time automatic calibration (voltage, humidity, ambient noise)
                                                                                                                                                    • Firmware filtering for better noise tolerance and clutter rejection
                                                                                                                                                    • 200,000+ Hours Mean Time Between Failure
                                                                                                                                                    • The narrowest beam of the XL-MaxSonar-EZ products
                                                                                                                                                    • Highest noise tolerance of the XL-MaxSonar-EZ products
                                                                                                                                                    • Great for large target applications
                                                                                                                                                    • The maximum range of 765 cm (300 inches)
                                                                                                                                                    • Hardware gain of 250
                                                                                                                                                    • Short-range, narrow detection zone for small targets

                                                                                                                                                    Package Includes :

                                                                                                                                                    • 1 x Maxbotix MB1240 XL-MaxSonar-EZ4 High-Performance Ultrasonic Sensor
