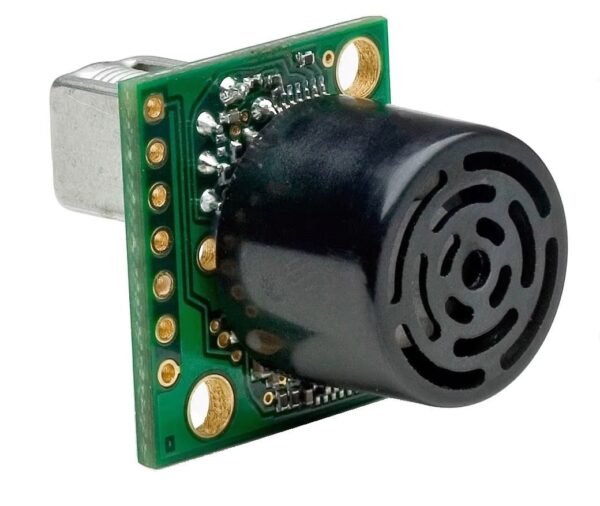

This Maxbotix MB1242 I2CXL-Maxsonar-EZ4 Ultrasonic Sensor Module is for indoor use only.
Features of the MB1242, I2CXL-MaxSonar-EZ4, include centimeter resolution, has the highest noise tolerance, and the narrowest beamwidth of any sensor in the I2CXL‑MaxSonar‑EZ sensor line, short to long-distance detection, range information from 20cm to 765cm, up to a 40Hz read rate, and an I2C interface.
The MB1242 is a great choice for applications where only larger objects need to be detected.
The MB1242 from the I2CXL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
Specifications
| Model | MB1242 |
| Operating Voltage (VDC) | 3 ~ 5.5 |
| Average Current Consumption (mA) | 4.4 |
| Frequency(Hz) | 42000 |
| Resolution | 1 cm |
| Read Rate (Hz) | 40 |
| Max. Sensing Distance (cm) | 765 |
| Sensor Cover Dia. (mm) | 16 |
| PCB Size ( L x W ) mm | 20 x 22.5 |
| Weight (gm) | 6 |
| Shipment Weight | 0.01 kg |
Features :
- Up to 40Hz reading rate
- Simple I2C bus interface
- Easy control of multiple sensors
- Control up to 127 sensors using two wires
- 42kHz Ultrasonic sensor measures distance to objects
- Virtually no dead zone, objects closer than 20 cm range as 20 cm
- Small, lightweight module
- Designed for easy integration into your project or product
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 200,000+ Hours Mean Time Between Failure
- High noise resistance
Package Includes :
- 1 x Maxbotix MB1242 I2CXL-Maxsonar-EZ4 Ultrasonic Sensor Module
