If you are wandering to make a device which used to enable a robot to detect obstacles in its path by utilizing the propagation of high-frequency sound waves. Then this sensor is needed for you. you can buy the Ultrasonic sensor
The MAXBOTIX MB7092 XL-MaxSonar have features of the weather-resistant which include small target rejection providing range information to the target with the largest acoustic return, a stability filter centimeter resolution, short to long-distance detection, range information from 20cm to 765cm a 10Hz read rate, and various output options: analog envelope, analog voltage, and RS232 serial.

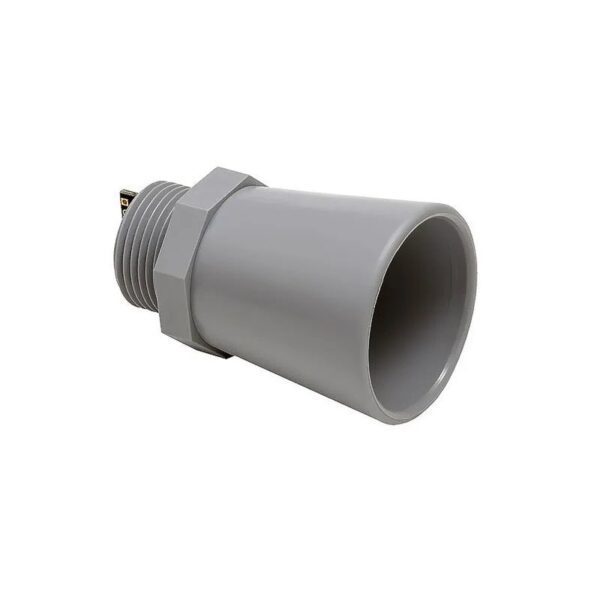

The MB7092 from the XL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).
Specifications
| Operating voltage (v) | 3.0 – 5.5V |
| Low average Current (mA) | 3.4 |
| Resolution | 1 cm |
| Refresh rate | 10Hz |
| Operational Temperature | -40 ~ +70˚C |
| Maximum range | 765 cm |
| Length (mm) | 38 |
| Diameter (mm) | 30 |
| Weight(gm) | 35 |
| Shipment Weight | 0.037 kg |
Features:
- Real-time auto-calibration and noise rejection.
- High acoustic power output.
- Precise narrow beam.
- Object detection includes a zero range of objects.
- The free run operation can continually measure and output range information.
- 10Hz refresh rate (MB7060, MB7062, MB7066, MB7070, MB7072, MB7076, MB7092).
- 6.6Hz refresh rate (MB7052).
- 5.1Hz refresh rate (MB7051, MB7053).
- The triggered operation provides the range of reading as desired.
- All interfaces are active simultaneously.
- RS232 Serial, 0 to Vcc, 9600 Baud, 81N.
- Analog, (Vcc/1024) / cm for standard models.
- Analog, (Vcc/1024) / 2cm for 10-meter models (MB7051, MB7066, MB7076).
- The sensor operates at 42KHz.
Package Includes:
- 1 x MAXBOTIX MB7092 Ultrasonic Precision Rangefinder Sonar.
