This is a MaxBotix MB7360 HRXL-MaxSonar-WR Ultrasonic Sensor. The sensors have high acoustic power output along with real-time auto-calibration for changing conditions that ensure users receive the most reliable ranging data for every reading taken. The HRXL-MaxSonar-WR low power 3V – 5.5V operation provides very short to long-range detection and ranging, in a tiny and compact form factor. The HRXL-MaxSonar-WR will typically detect objects from 0-cm to 500-cm and provide sonar range information from 30-cm out to 500-cm with 1-cm resolution. Objects from 0-cm to 30-cm typically range as 30-cm.
Features of the weather-resistant MB7360, HRXL-MaxSonar-WR, include centimeter resolution, short to long-distance detection, range information from 30cm to 500cm for the nearest detectable target, up to a 7.5Hz read rate.

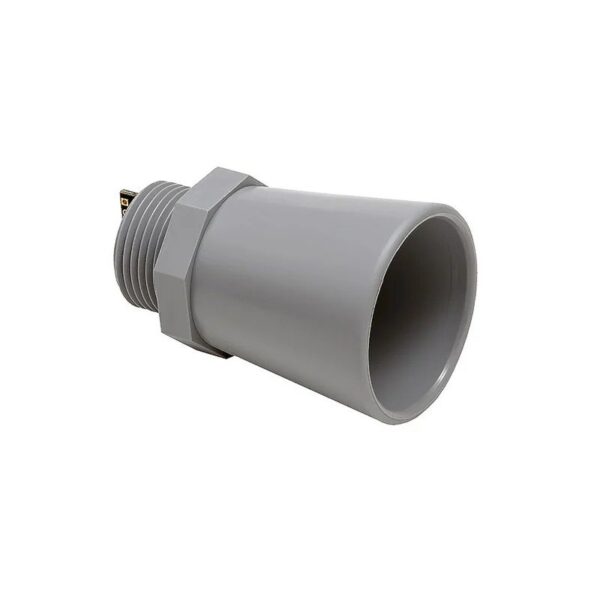

The MB7360 from the HRXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).
Specifications
| Model | MB7360 |
| Operating Voltage (VDC) | 3 ~ 5.5 |
| Average Current Consumption (mA) | 2.9 |
| Frequency(Hz) | up to 49 Hz |
| Read Rate (Hz) | 7.5 |
| Operating Temperature (掳C) | -40 to 65 |
| Max. Sensing Distance (cm) | 765 |
| Outer Diameter(mm) | 44 |
| Nut Size (mm) | 26 |
| Color | Grey |
| Length (mm) | 1680:00:00 |
| Weight (gm) | 52 |
| Shipment Weight | 0.06 kg |
Features:
- Acoustic and electric noise resistance
- Low cost
- Quality controlled beam characteristics
- Ranging is triggered externally
- Fast measurement cycle
- No power-up calibration required
- Easy mounting
- Reliable and stable range data
- Fast measurement cycle
- Perfect for when objects may be directly in front of the sensor during power-up
Package includes:
- 1 x MaxBotix MB7360 HRXL-MaxSonar-WR Ultrasonic Sensor
