Features of the weather resistant MB7560, SCXL-MaxSonar-WR, include reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 300mm to 5000mm for the nearest detectable target, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

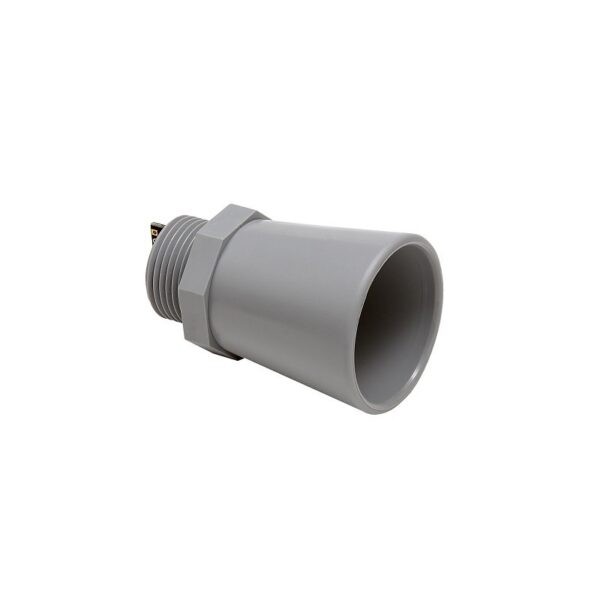

The MB7560 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).
The SCXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.
In addition, the MB7560 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Specifications:
- Operates Voltage: 2.7-5.5V
- Current: 68mA
- Resolution: 1-mm
- Read rate: 0.59Hz
- Ultrasonic sensor measures distance to objects:42kHz
- Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
- Virtually no sensor dead zone: objects closer than 30cm range as 30cm
- Operational temperature: -40°C to +65°C (-40°F to +149°F)
- Weather resistant: (IP67), optional chemical resistant F-Option
- Matches standard: electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
- RS232 Serial Output
- Maximum range: of 5 meters (196 inches)
Features:
- RoHS Compliant
- Small, light weight module
- Designed for easy integration into your project or product
- Long range, narrow detection z
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 20+ Years Mean Time Between Failure
- Our longest range outdoor, weather resistant, ultrasonic sensor
- Analog envelope output for easy troubleshooting and signal processing
Packages Includes:
- 1 x MaxBotix MB7560 SCXL-MaxSonar-WR Ultrasonic Sensor
