full range of cable mount as well as PCB mount RF connectors. These connectors are designed to match industry-standard 50 ohm and 75-ohm cables with longer life. This connector is a miniature quick connect/disconnect radio frequency connector used for wide range of applications like GPS and Network connectivity appliactions.
Specifications
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Female |
| Mounting Type | PCB Mount |
| Termination Style | Solder Type |
| Mounting Feature | Surface Mount / Offset Type |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper Alloy |
| Body Plating | Gold Plating |
| Impedance (Ω) | 50 |
| Shield Termination | NA |
| Shipment Weight | 0.01 kg |
Features:
- MCX Connector,Female/Jack, Straight/180°,Offset Type,PCB Mount,50Ohm,Gold Plating
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent broadband performance and low reflections.
- High-Quality product
Package Includes:

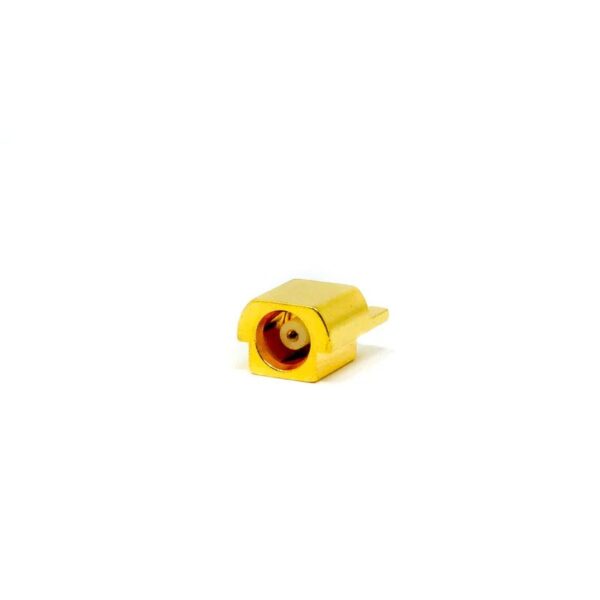

- 1 x MCX Gold Plated PCB Edge Mount Female Connector
