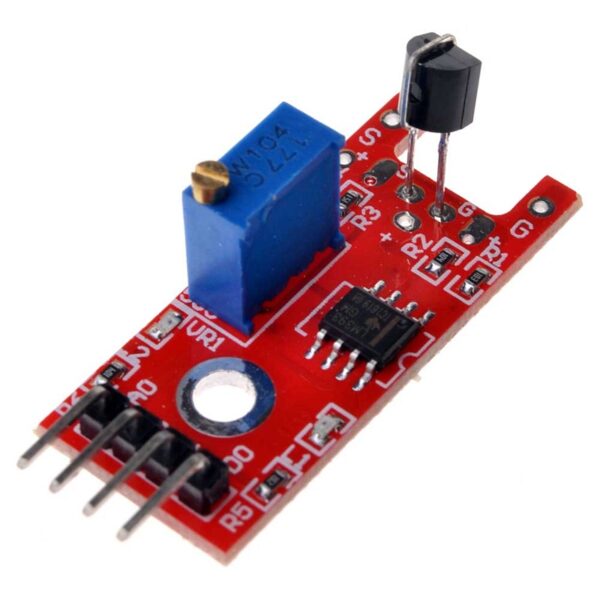

Specification :
- Main chip: LM393
- Working voltage: for DC 5V
- Single-channel signal output
- Low-level output signal used for human body touch sensor alarm
- Adjustable sensitivity
- Pin Connector to board: 4 Pins
Pin Description:
Outputs a signal if the metal pike of the Sensor was touched. You can adjust the sensitivity of the sensor with the controller.
Digital Out: At the moment of contact detection, a signal will be outputted.
Analog Out: Direct measuring value of the sensor unit.
LED1: Shows that the sensor is supplied with voltage
LED2: Shows that the sensor detects a magnetic field
Note: The signal will be inverted; that means that if you measure a high value, it is shown as a low voltage value at the analog output.
