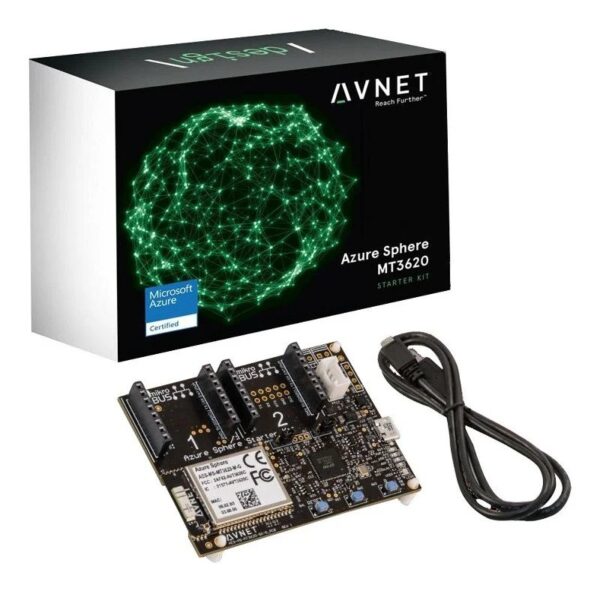

Microsoft’s Azure Sphere MT3620 Starter Kit supports rapid prototyping of highly secure, end-to-end IoT implementations using Microsoft’s Azure Sphere. The small form-factor carrier board includes a production-ready MT3620 Sphere module with Wi-Fi connectivity, along with multiple expansion interfaces for easy integration of sensors, displays, motors, relays, and more.
Specifications
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-A7, Cortex-M4F |
| OS | Azure Sphere Operating System for end-to-end security |
| ISU interfaces | 3 of 5 available: Pre-configured for UART, SPI, I2C (max interface rates are: UART=3Mbps, SPI=40MHz, I2C=1MHz) |
| ADC/GPIO | 3x 12bit ADC inputs (or can be used as GPIOs) |
| PWM/GPIO | 9x PWM outputs, or can be used as GPIOs (for a total of up to 24 GPIOs) |
| RTC | On-chip, requires VBAT supply |
| Wi-Fi | Dual-band 2.4/5GHz 802.11 a/b/g/n |
| Antenna | Onboard dual-band 2.4/5GHz chip antenna (Pulse W3006) |
| Operating Temperature(°C) | -30 ~ 85 |
| Length(mm) | 33 |
| Width(mm) | 22 |
| Height(mm) | 3.68 |
| Weight(g) | 104 |
| Shipment Weight | 0.13 kg |
Features:
Carrier Board
- Two MikroE Click board expansion sockets
- Grove expansion connector (I2C)
- On-board sensors
- 3-Axis accelerometer
- 3-Axis gyro
- Temperature
- Pressure/Barometric
- Interface for optional OLED 128×64 display
- USB Interface
- Supports debug, service & recovery UARTs, and JTAG
- User push switches and LEDs
- 5V to 3.3V Power regulation
- DC Supply Input:
- USB 5V from a host computer
- Terminal footprints for external 5VDC and VBAT supplies
Azure Sphere MT3620 Module
- MT3620AN SoC
- 3x ISU interfaces pre-configured for UART, SPI, I2C
- ADC/GPIO: 3x 12-bit ADC inputs (or 3 GPIOs)
- PWM/GPIO: 9x PWM outputs (or up to 24 GPIOs)
- RTC (requires VBAT supply)
- Dual-band 2.4/5GHz 802.11 a/b/g/n WiFi
- Dual-band 2.4/5GHz chip antenna
Package Includes:
- 1 x Carrier board with Azure Sphere MT3620 module
- 1 x USB Cable
- 1 x Quick Start Card
