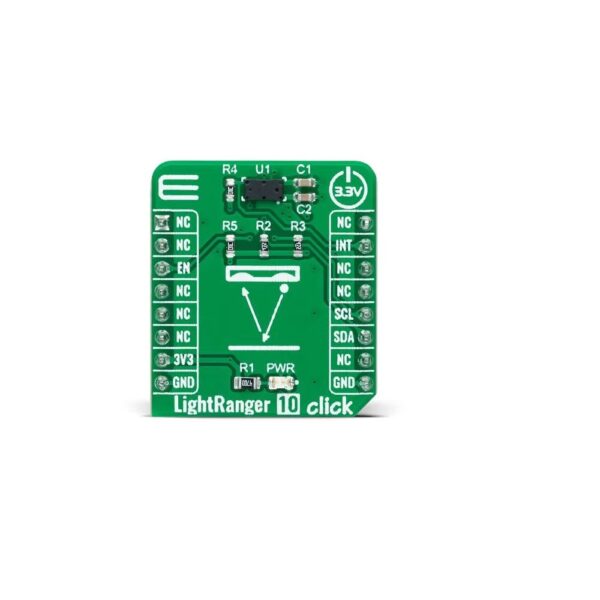

LightRanger 10 Click as its foundation uses the VL53L4CX, a ToF (Time-of-Flight) optical distance sensor with an extended target detection range from STMicroelectronics. This ToF sensor integrates a VCSEL (vertical-cavity surface-emitting laser), which emits an entirely invisible 940nm IR light, totally safe for eyes (Class 1 certification), and a SPAD (single-photon avalanche diode) array which helps the VL53L4CX to achieve the best ranging performance even when a Click board™ is hidden behind a wide range of cover glass materials.
Specification and Features:
- Type: Optical Sensor ModuleInterface I2C
- Compatibility mikroBUS
- Click board size S (28.6 x 25.4 mm)
- Input Voltage 3.3V
- On-board modules VL53L4CX – ToF (Time-of-Flight) optical distance sensor from STMicroelectronics
- Fast and accurate distance ranging, major improvement in long distance-ranging performance across all targets and light levels,
- Multiobject detection capability, targets beyond 80 cm range are immune to crosstalk from cover glass, and more
Package Includes:
- 1 x Mikroe LIGHTRANGER 10 CLICK
