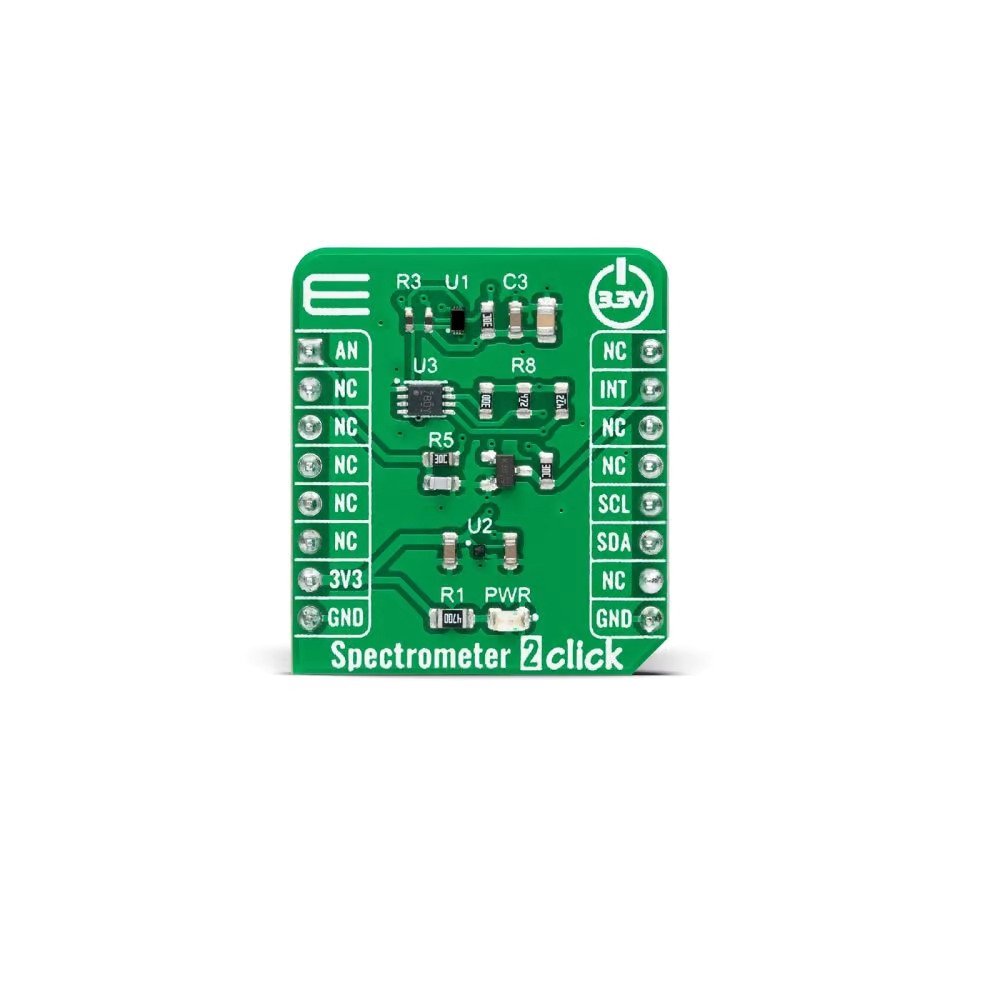

Spectrometer 2 Click as its foundation uses the VD6283TX, a color sensor with advanced light flicker extraction from STMicroelectronics. It performs fast and accurate light measurements thanks to an individual ADC with a resolution of 24 bits (16 bit + 8 bit for high accuracy under low light) and a readout for six color channels: red, green, blue, IR, clear, and visible. The color channels can be individually enabled to optimize power consumption, alongside 15 programmable gains for a high-dynamic range, through a serial interface. Six channels can operate with independent, parallel reading for ALS or flicker operations, one represents a dedicated fast channel for light flicker measurement, and one stands for an internal dark channel.
Specifications and Features:
- Type: Optical Sensor
- Low power consumption
- Interface: Analog, I2C
- Compatibility: mikroBUS
- Click board size: 28.6 x 25.4 mm
- Input Voltage: 3.3V
- Parallel sensing of all six channels
- On-board modules VD6283TX – hybrid filter multispectral sensor with light flicker engine from STMicroelectronics
- Advanced hybrid filters with high photocount response
- Innovative readout architecture to extract AC light flicker signal, from 100Hz to 2kHz frequency detection – sine or square wave
Package Includes:
- 1 x Mikroe SPECTROMETER 2 CLICK
