MKS SBASE V1.3 is the latest motherboard for 3D Printer. It is based on the ARM platform and uses 32bit 100M Cortex-MS MCU-LPC1768.
Difference Compare to MKS SBASE V1.0 and V1.2?
- Fix temperature problem.
- Add thermocouple Pins( can’t be used with 12864lcd together).
- Create some pins P1.22 P1.23 P2.12 P2.11 P4.28 for further development.
- Extend 3.3V / 5V for endstops power.
- Preassemble two big heatsinks.
Specifications
| Model | MKS sbase v1.3 |
| Power input | 12-24V |
| Driver chip | DRV8825 |
| Material | 4 layers PCB |
| Length(mm) | 46.5 |
| Width(mm) | 95 |
| Height(mm) | 3 |
| Shipment Weight | 0.05 kg |
Features:
- Using 32bit 100M Cortex-M3 MCU-LPC 1768, and improve its performance highly.
- Support highly modular open source firmware Smoothieware, easy for secondary development.
- Support network function, then proceed remote control via IE Explorer.
- Using DRV8825 stepper driver which supports 32-micro step and with excellent cooling.
- Currents of the stepper motor can be set directly, which can avoid the damage.
- Using high-quality FR-4 4 layers PCB and special design for cooling.
- Using professional power chip, support 12V-24V DC input.
- Good to work with LCD12864 and MKS TFT touch screen.

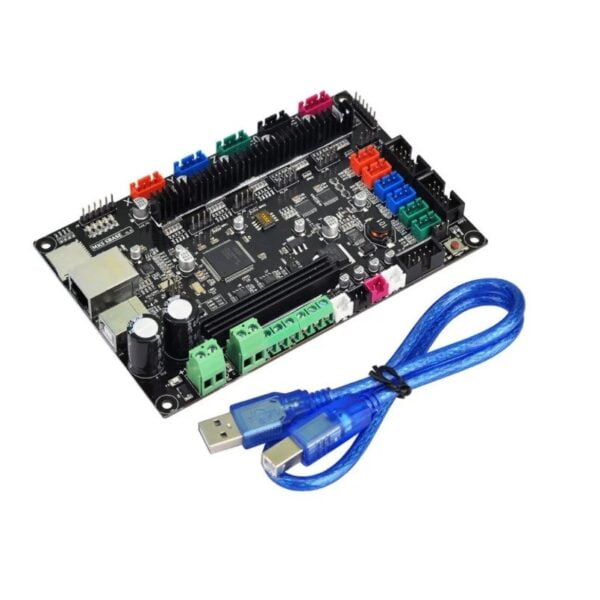

Package Includes:
- 1 x MKS SBASE V1.3 32-bit Open Source Smoothieboard
- 1 x USB Cable
