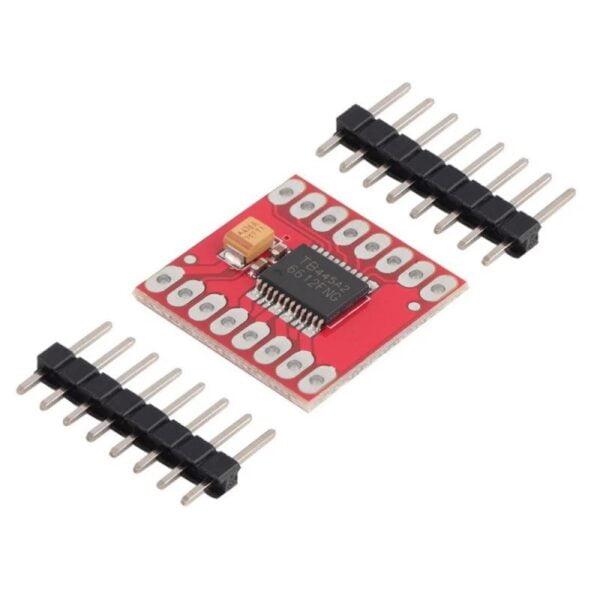

The Motor Driver TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop.
The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.
Specifications
| Driver Model | TB6612FNG |
| Operating Voltage (VDC) | Jan-00 |
| Peak Current (A) | 4:48 AM |
| Continuous Current (A) | Jan-00 |
| No. of Channels | 1 |
| LED Indicator | Yes |
| Cooling Fan | No |
| Arduino Sheild | No- can be used with Wire connection |
| Polarity Protection | NO |
| Dimensions in mm (LxWxH) | 30 x 20 x 10 |
| Weight (gm) | 22 |
| Shipment Weight | 0.03 kg |
Features :
- Output current: Iout=1.2A(average) / 3.2A (peak)
- Standby control to save power
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- All pins of the TB6612FNG broken out to 0.1″ spaced pins
- Filtering capacitors on both supply lines
Package Includes :
- 1 x Dual Motor Driver Module 1A TB6612FNG For Arduino Microcontroller
