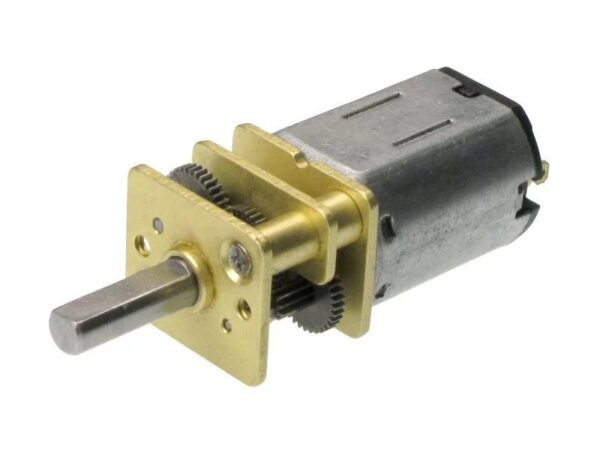

The N20 Micro Gear 12V 100RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 100RPM 12V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Specifications
| Model No. | N20-12-100 |
| Motor Type | Single Shaft |
| Rated Operating Voltage (VDC) | 12 |
| No Load Current (mA) | 0.06 A |
| Stall Current (A) | 0.75 |
| Rated Speed (RPM) | 100 |
| Operating Voltage (VDC) | 6 ~ 12 |
| Rated Torque(kg-cm) | 0.52 |
| Stall Torque(Kg-Cm) | 1.8 |
| No load Speed (RPM) | 100 |
| Shaft Type | D-type |
| Single Side | |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 10 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipment Weight | 0.01 kg |
Features:
- Type: N20 Micro Gearbox
- Fuselage Dimensions: 15 x 12 x 10 (LxWxH) mm
- Gearbox Dimensions: 10 x 12 x 10 (LxWxH) mm
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Package Includes:
- 1 x N20 Micro Gear 12V 100RPM DC Motor (High Torque)
