HMI Displays are becoming increasingly popular as a result of their intelligence, and Nextion is one of the popular brands that only manufactures a Diverse Range of high-quality displays at a comparatively high price. These HMI displays are faster to interact with than other HMI displays because they use high-quality components that set them apart.
Nextion HMI Display gain more popularity in the market due to its originality and compatibility in industries and High-end projects also need these types of high-end displays.
Specifications
| Model No. | NX8048T070 | |
| Display Type | 011R(R:Resitive Touchscreen) | |
| Operating Voltage (VDC) | 4.75 ~ 7 | |
| Max. Operating Current (mA) | 510 | |
| Touch Type | Resistive | |
| Colors | 65K (65536) | |
| Flash Memory | 16 MB | |
| RAM | 3584 BYTE | |
| USB Interface | No | |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card | |
| Working Temperature Range (°C) | -20 to 70 | |
| Working Humidity Range | 10% to 90% RH | |
| Display Layout Size (L x W x H) mm |
| |
| Net weight (gm) | 270 | |
| Shipment Weight | 0.28 kg |
Features:
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgradation
- Visual Area: 154.08mm(L)×85.92mm(W)
- Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%
- Recommended Power Supply: 5V, 2A, DC
- Certificates: CE/EMC, RoHS (certificates)
Package Includes:

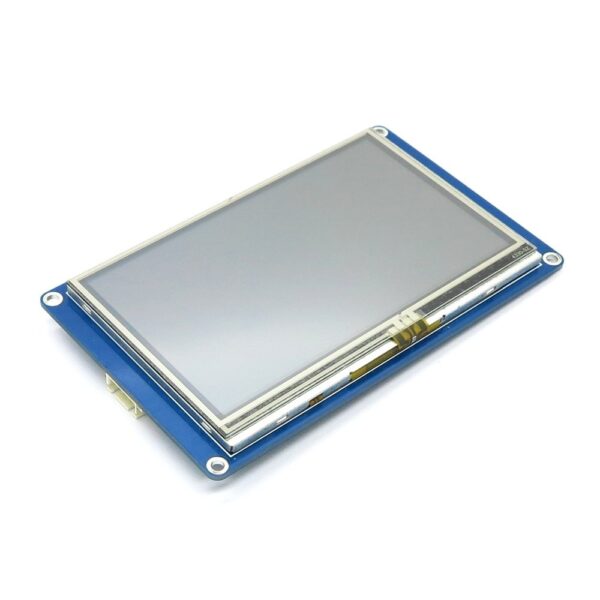

- 1 x Nextion NX8048T070 – Generic 7.0″ HMI TFT LCD Touch Display
- 1 x Connecting Cable
- 1 x Power Supply Test Board
