Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes. With the Nextion Editor software, users are able to create and design their own interfaces for Nextion display.
Specifications
Model | NX8048K070-011C | |
Size (inch) | 7 | |
Operating Voltage (VDC) | 5 | |
Colour | 64K 65536 colors | |
Layout size |
| |
Active Area (A.A.) |
| |
Visual Area (V.A.) |
| |
Resolution |
| |
Touch Type | Capacitive | |
Touches | > 1 million | |
Backlight | LED | |
Backlight lifetime (Average) | >30,000 Hours | |
Brightness | 230 nit | |
RAM | 8192 BYTE | |
FLASH Memory | 32 MB | |
Instruction Buffer | 1024 BYTE | |
User Storage | 1024 BYTE | |
Weight | 598g | |
Shipment Weight | 0.6 kg |
Features:
- Nextion Type: Intelligent Series

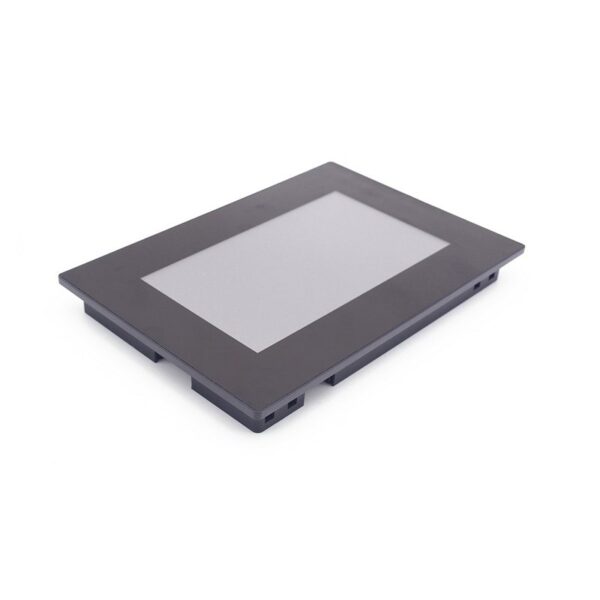

- Nextion Models: NX8048K070-011C (7.0-inch capacitive touchscreen with enclosure)
- Built-in RTC support (Battery type: CR1220)
- Operating Voltage:5V-7V
- Operating Current: 510mA(VCC=+5V, Brightness is 100%).
Package Includes:
- 1 x Power Supply Test Board
- 1 x Nextion Enhanced NX8048K070-011C 7.0″ HMI Capacitive Touch Display with enclosure
- 1 x XH2.54 4P Wire
- 4 x Mounting Buckle & Screw
