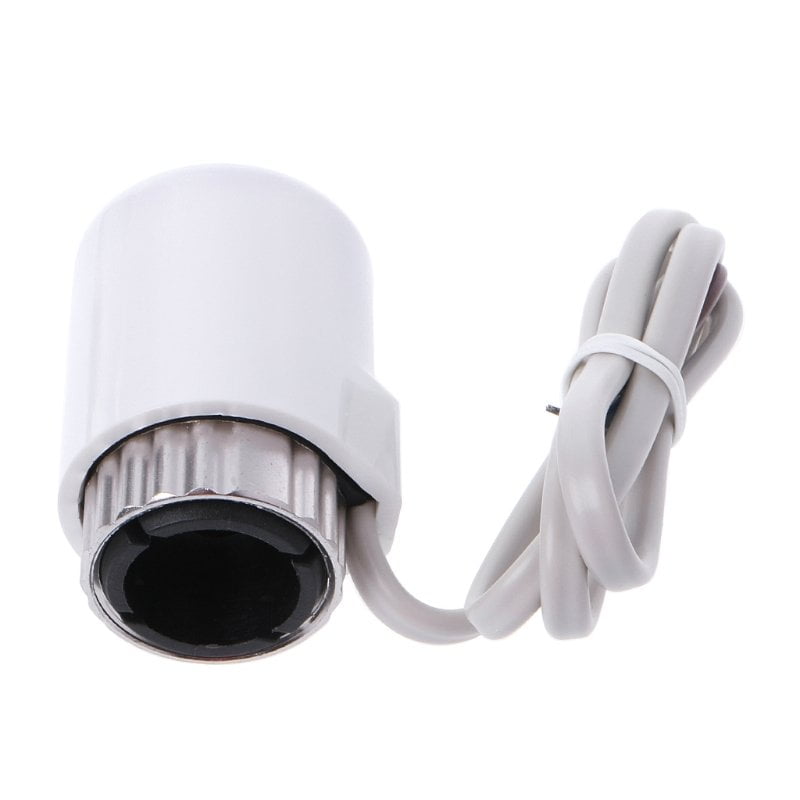

This is a normally close thermal electric actuator for the underfloor heating manifold. It controls water flow through an underfloor heating system.
Specifications
| Type | Normally Closed |
| Material | Retardant PC |
| Input Voltage (V AC) | 230V 2W |
| Power | 2W |
| Thrust | 110N |
| Route | 3mm/5mm |
| Time | 3-5Min |
| Connecting Size | M30x1.5mm |
| Environmental Temperature | -5~60℃ |
| Waterproof Performance | IP54 |
| Length (mm) | 65 |
| Diameter (mm) | 40 |
| Weight (gm) | 100 |
| Shipment Weight | 0.1 kg |
Features:
- Controls water flow through an underfloor heating system
- 2-wire connection with one valve per loop
- Unique quick-lock snap action.
- Red spot indicator on top
- Can be fixed easily to an adaptor ring
Package Includes:
- 1 x Normally Close Thermal Actuator For Underfloor Heating Manifold
