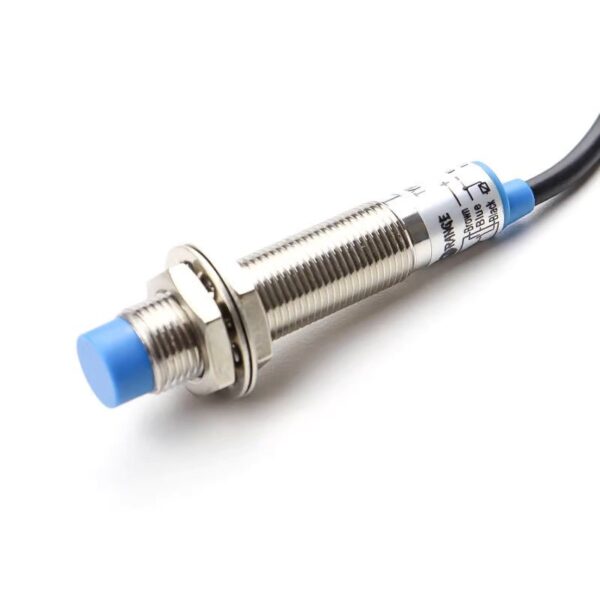

Orange 4mm PNP Inductive Proximity Sensor RM12 DC6~36V (Unshielded) is a brand new inductive proximity sensor that detects a metal object. Non-flush, or unshielded sensors, do not have the shield around the end of the sensor so the field can radiate from the face to the sides of the sensor in a larger pattern.
This M12 indicates a cylinder type whose diameter is 12mm and the length of that cylinder is 62mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 4mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.
The Inductive Proximity Sensor application:
- Mine metallurgy.
- Plastics, textile and Chemical Industry.
- Light industry, tobacco, electric power, railway, and war industry.
Specifications
| Model | Orange RM12~3004 PA |
| Operating Voltage (VDC) | 6 ~ 36 |
| Detection Distance (mm) | 4 |
| Outer Thread Size | M12 |
| Object Type | Inductive |
| Output Type | PNP Normally Open Three-line |
| Installation Type | Non-Flush (Unshielded) |
| Max Output Current (mA) | 200 |
| Setting Distance (mm) | 0 ~ 2.4 |
| Insulation Resistance (MΩ) | 50 |
| Operating Temperature (°C) | -25 to 70 |
| Storage condition (℃) | -30 to 80 |
| Cable Diamensions | Ø4, 3-Wire, 2 Meter |
| Weight (gm) | 60 |
| Shipment Weight | 0.064 kg |
Features:
- IP67 protection structure (IEC standard).
- Compact volume.
- High precision of repeated location.
- Diversified exterior.
- Good performance of anti-interference.
- Many output forms.
- High on-off frequency.
- Wide voltage range.
- Dustproof, vibration proof, waterproof and oil proof.
- With short-circuit protection and inverted connecting protection.
- Long service life.
Package Includes:
- 1 x Orange 4mm PNP Inductive Proximity Sensor RM12 DC6~36V (Unshielded).
