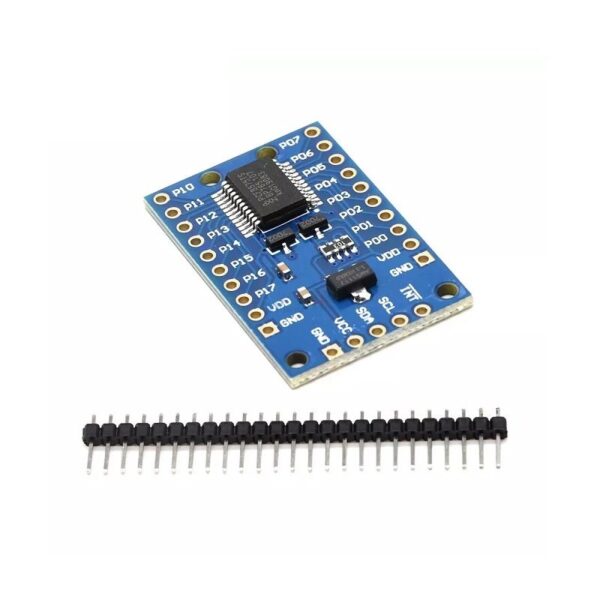

Are the I/O pins exhausted? This large module allows the user to expand up to 16 i/o with only two i/o for control. The PCF8575 is connected via an I2C interface and features 16-bit near-bi-directional input/output pins.
Onboard 3.3V level converter circuit, if you don’t have a solder pad of VCC-VDD, the PCF8575 level is 3.3V. If you solder it, the level will be the same as with VCC
Specifications
| Item Type | PCF8575 |
| Operating Voltage(V) | 2.5-5.5VDC |
| Current Consumption (mA) | 100mA (max) |
| I²C | 0x20 (default), can be changed by soldering A1 and selection pads A2. |
| Shipment Weight | 0.008 kg |
Features:
- 16 individually addressable pins.
- Each pin configurable for input or output
- Open drain interrupts output pin for input change interrupt.
- Ideal for R3 and other MCUs to simple relay, buzzer, button, led.
Package Includes:
- 1 x Expander Module
