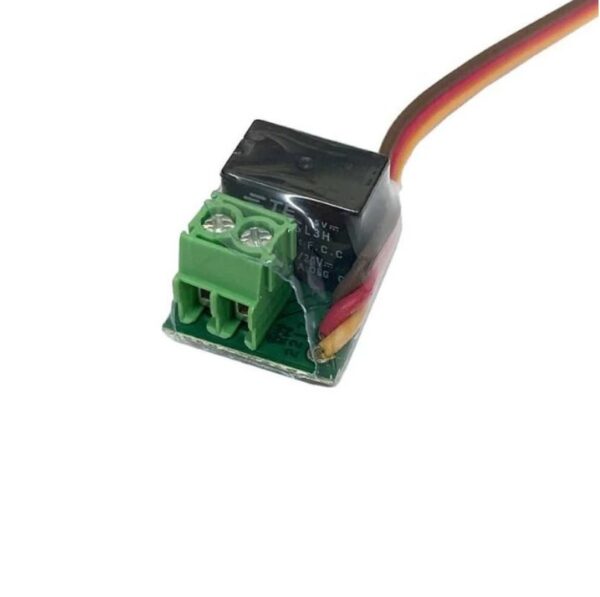

This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation
Radio control (often abbreviated to RC) is the use of control signals transmitted by radio to remotely control a device. Examples of simple radio control systems are garage door openers and keyless entry systems for vehicles, in which a small handheld radio transmitter unlocks or opens doors
- Control of lighting systems on RC planes, boats, cars.
- Control of digital cameras in aerial photography.
- Control of auxiliary weapons in RC combat tournaments.
- Control of low power home lighting systems.
- Control of nearly any low powered application that can be toggled with a switch.
Note: PicoSwitch has a maximum voltage rating of 125VAC, making it unsuitable for toggling 220VAC applications
Specification
| Max relay voltage | 60VDC, 125VAC |
| Max relay current | 1A at 24VDC, 0.5A at 125VAC (60W light-bulb) |
| Relay resistance | 100 mO max |
| Operating voltage | 3.5V to 5.5V |
| Current draw from reciver | 30mA |
| PICO SWITCH RC RELAY SWITCHES | 1A LOADS 7.6G/0.27OZ |
| Shipment Weight | 0.005 kg |
Features:
- Light weight
- Best for your DIY project
- Low power consumption
- Easy to use
Packages Includes:
- 1 x PicoSwitch radio controlled relay
