The ADS1013, ADS1014, and ADS1015 devices (ADS101x) are precision, low-power, 12-bit, I2Ccompatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10
package, and a VSSOP-10 package. The ADS101x devices incorporate a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS101x well suited for power- and space-constrained, sensor measurement applications.
The ADS101x perform conversions at data rates up to 3300 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1015 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the
ADS1014 and ADS1015 for under- and overvoltage detection. The ADS101x operate in either continuous conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.
Applications:
- Portable Instrumentation
- Battery Voltage and Current Monitoring
- Temperature Measurement Systems
- Consumer Electronics
- Factory Automation and Process Control
Specification
| Model No. | ADS1015 |
| Product Type | ADC +/-24V |
| Operating Voltage(V) | 2.0 V to 5.5 V |
| I2C Interface | Four Pin-Selectable Addresses |
| Operating Temperature (°C) | –40°C to +125°C |
| Programmable Data rate | 128 SPS to 3.3 kSPS |
| Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000V |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500V | |
| Power Supply Option | Power supply (VDD to GND) |
| Ultra-Small X2QFN Package | 2 mm × 1.5 mm × 0.4 mm |
| Shipment Weight | 0.004 kg |
Features:
- Small in size
- Color: Black
- 12-Bit Noise-Free Resolution
- Low Current Consumption: 150 μA (Continuous-Conversion Mode)
- Single-Cycle Settling
- Internal Low-Drift Voltage Reference
- Internal Oscillator
- Four Single-Ended or Two Differential Inputs (ADS1015)
- Programmable Comparator (ADS1014 andADS1015)
packages Includes:

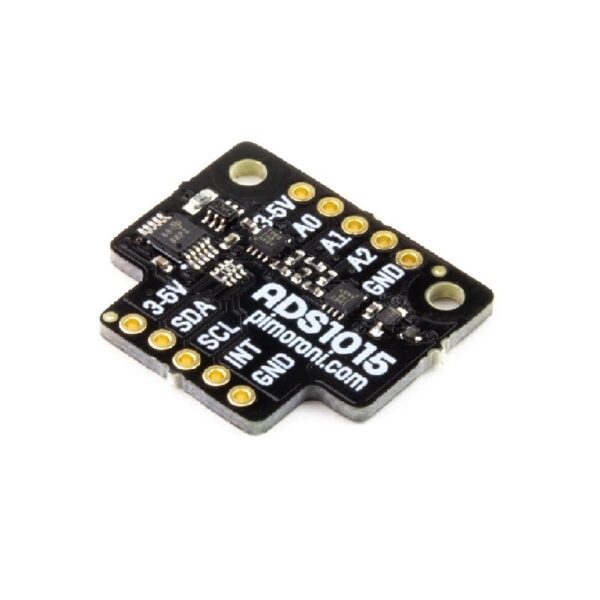

- 1 x PIMORONI ADS1015 +/-24V ADC breakout
